Pneumatic Sleeve Type Control Valve
1 / 2

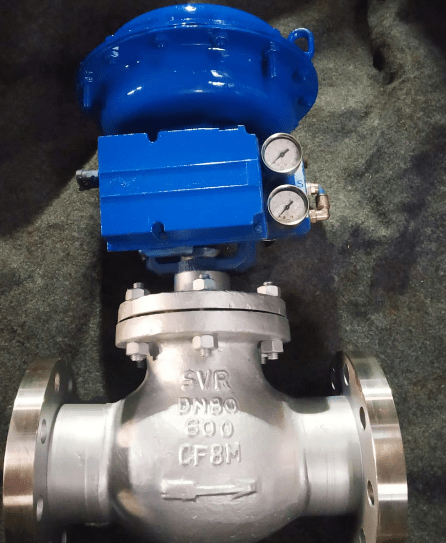

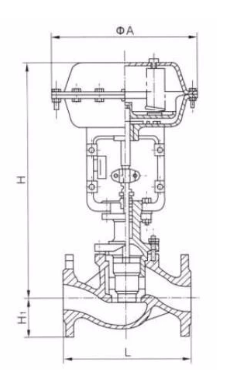

Pneumatic Sleeve Type Control Valve

Sleeve-guided pneumatic control valve for stable regulation under changing process pressure conditions.

Technical Specifications

Key Features & Applications

African Valve a well known Pneumatic Sleeve Type Control Valve Supplier in Egypt for refineries, power plants, chemical processing facilities and industrial flow-control systems across Nigeria and other African markets.


High differential pressure can make accurate control difficult, particularly when vibration and unstable plug movement affect the valve's performance. A Pneumatic Sleeve Type Control Valve uses a guided plug moving inside a cylindrical sleeve or cage to improve stability during throttling.


The sleeve guides the moving plug and may incorporate specially shaped flow openings to provide the required control characteristic. In pressure-balanced configurations, the trim can also reduce the actuator force needed to move the plug against high differential pressure.


Technical Specifications

Parameter

Specification

Valve Design

Globe Body / Sleeve-Guided Trim

Size Range

DN25–DN300

Pressure Rating

PN16, PN40, PN64 / Class 150, 300, 600

Body Material

ASTM A216 WCB, ASTM A351 CF8M, ASTM A217 WC6

Trim Configuration

Balanced / Unbalanced Plug

End Connection

Flanged / Butt Weld

Actuator Type

Pneumatic Diaphragm

Actuator Action

Single Acting / Double Acting

Instrument-Air Pressure

Typically 3–6 bar

Air Quality

Clean, dry, filtered instrument air

Air Connection

G1/4 / 1/4-inch NPT

Control Input

4–20 mA with Electro-Pneumatic Positioner

Operating Mode

Modulating

Fail Position

Fail Open / Fail Closed / Fail Last

Design Standard

IEC 60534 Series / ASME B16.34, IEC 60534-4
