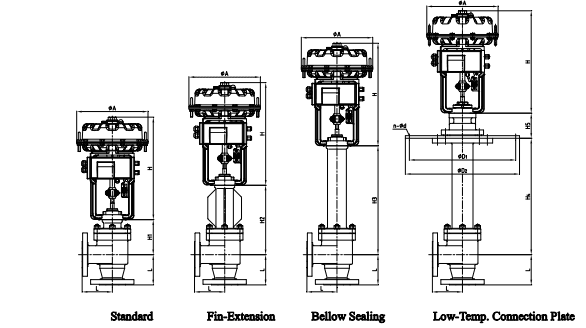

Pneumatic Angle Type High Pressure Regulating Control Valve Manufacturer in Africa

Product Introduction

High pressure process systems demand valves that not only offer precise control but also operate efficiently in harsh environments. A Pneumatic Angle Type High Pressure Regulating Control Valve is specifically designed with an angled body and a pneumatic actuator to control the flow of process fluids such as liquid, gas, steam, etc., at high pressure. An angled flow path in the valve allows it to operate effectively in situations where high pressure differential exists. African Valve is  the largest  Pneumatic Angle Type High Pressure Regulating Control Valves Manufacturer in Africa. It produces and delivers its products in various material grades, pressure classes, and actuator options for projects in Africa as well as international markets.

Why Is a Pneumatic Angle Type High Pressure Regulating Control Valve Used?

Pneumatic Angle Type High Pressure Regulating Control Valves are employed in situations wherein there is a need for precision regulation in high pressure operations where the process might be subject to flashing, cavitation, or high velocity of fluids. The angle body configuration makes it possible for the valve to change the direction of flow while at the same time maintaining a reduction in pressure loss and erosion due to severe conditions of operation. Pneumatic operation allows a quick response to control signals to make it possible to regulate flow, pressure, and temperature without stopping the process.

Design & Working Principle

This valve has an angular body, high-pressure trim, valve plug, seat ring, stem, pneumatic actuator, and intelligent positioner. Once it receives a signal from the controller, the actuator raises the stem up, thus positioning the valve plug inside the seat with precision. Thus, it controls the flow area gradually, ensuring controlled operation of the process fluid regardless of the high pressure differences. As per the needs of the service, the valve comes with pressure balanced trim, multi-stage pressure reducing trim, cavitation control cages, low noise trim, and intelligent positioners.

Materials & Construction

The valve is manufactured using:

• Carbon Steel – ASTM A216 WCB / ASTM A105

• Stainless Steel – ASTM A351 CF8 / CF8M

• Stainless Steel Forgings – ASTM A182 F304 / F316

• Alloy Steel – ASTM A217 WC6 / WC9 / C5 / C12

• Duplex Stainless Steel – ASTM A995 Grade 4A

• Super Duplex Stainless Steel – ASTM A995 Grade 5A / Grade 6A

Construction features include:

• Angle Body Design

• Pneumatic Diaphragm or Piston Actuator

• Pressure Balanced Trim

• Multi-stage Pressure Reduction Trim (Optional)

• Anti-Cavitation Trim (Optional)

• Low Noise Trim (Optional)

• Blow-out Proof Stem

• Flanged and Butt Weld End Connections

Technical Specifications

• Size Range: DN25 to DN600 (1" to 24")

• Pressure Ratings: Class 300, 600, 900, 1500, 2500

• Design Standards: ASME B16.34, IEC 60534

• Testing Standard: API 598, IEC 60534-4

• End Connections: Flanged, Butt Weld

• Operation: Pneumatic Diaphragm, Pneumatic Piston

Industrial Applications

Pneumatic Angle Type High Pressure Regulating Control Valves are widely used in:

• Oil & Gas

• Power Generation

• Petrochemical Plants

• Chemical Processing

• Steam Generation Systems

• Desalination Plants

• Marine & Offshore

• Mining

• High Pressure Utility Systems

Product Features

• Designed for high-pressure regulating applications

• Angle body minimizes pressure loss and flow turbulence

• Optional anti-cavitation and multi-stage pressure reduction trim

• Pneumatic actuator provides rapid automatic response

• Suitable for continuous modulating service

• Manufactured according to internationally recognized engineering standards

Manufacturing & Inspection

African Valve manufactures Pneumatic Angle Type High Pressure Regulating Control Valves according to international engineering standards and customer project specifications. Every valve undergoes dimensional inspection, hydrostatic shell testing, seat leakage testing, actuator calibration, functional stroke testing, and final operational verification before dispatch. Material Test Certificates (MTC), Pressure Test Reports, PMI reports, NDT reports, calibration records, and third-party inspection documentation are available to support project quality and compliance requirements.

Supply Across Africa

African Valve supplies Pneumatic Angle Type High Pressure Regulating Control Valves to power stations, boiler feed water systems, oil & gas facilities, petrochemical plants, desalination projects, chemical processing units, mining operations, and industrial infrastructure throughout Nigeria, Egypt, South Africa, Kenya, Ghana, and other African countries. Valves are available in multiple material grades, pressure classes, trim configurations, end connections, and pneumatic actuator options to meet demanding high-pressure process control applications.
