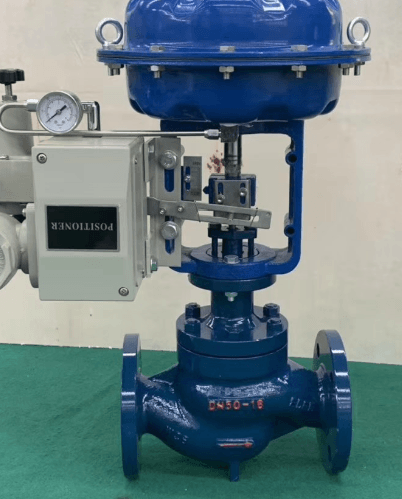

Pneumatic Actuated Globe Type Control Valve
Body: Stainless Steel, Carbon Steel, Ductile Iron
Bonnet: Stainless Steel, Ductile Iron , Carbon Steel
Seat: Stainless Steel
Gasket: PTFE, Graphite
Guide Sleeve: Stainless Steel
Nominal Size: DN10 to DN300
Nominal Pressure: PN16 to PN160, Class150 to Class2500
End Connection: Flanged, Socketweld, Butweld

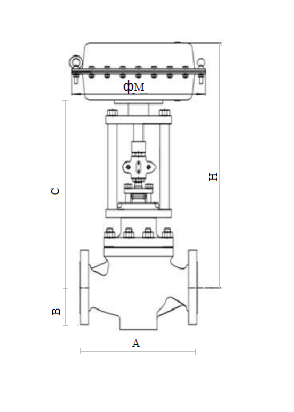

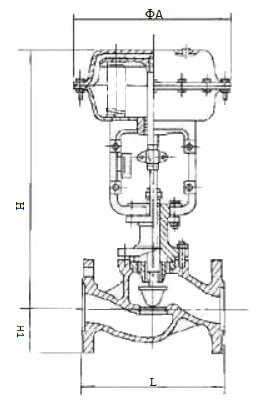

Dimension
PN16Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Unit: mm
| DN | A | B | C | H | ФM |
| 15 | 184 | 64 | 114 | 504 | 298 |
| 20 | 184 | 64 | 114 | 504 | 298 |
| 25 | 184 | 64 | 114 | 504 | 298 |
| 32 | 200 | 75 | 120 | 510 | 298 |
| 40 | 222 | 80 | 136 | 526 | 298 |
| 50 | 254 | 85 | 148 | 611 | 360 |
| 65 | 276 | 104 | 188 | 659 | 360 |
| 80 | 298 | 113 | 188 | 659 | 360 |
| 100 | 352 | 125 | 210 | 755 | 440 |
| 125 | 410 | 140 | 241 | 905 | 510 |
| 150 | 451 | 153 | 257 | 921 | 510 |
| 200 | 543 | 200 | 343 | 1198 | 640 |
