Pneumatic Single Seat Globe Control Valve

Home > Control Valve
Image 1084
Image 1085

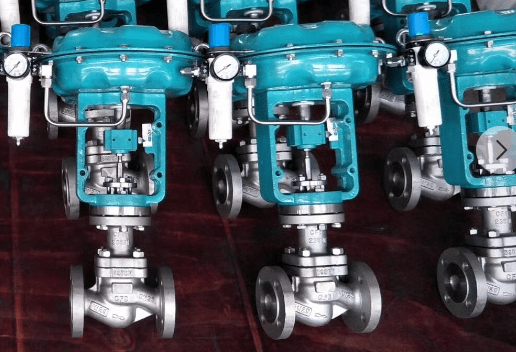

Pneumatic Single Seat Globe Control Valve

No attributes available

Pneumatic Single Seat Globe Control Valve

Body: SS304, SS316, CF8, CF8M, F304, F316, WCB

Bonnet: CS, SS304, SS316

Packing: Graphite, PTFE

Stem: Stainless Steel

Nominal Diameter: DN20 to DN200

Nominal Pressure: PN16 to PN64, Class150 to Class2500

End Connection: Buttweld, Socketweld, Flanged

Actuation Type: Double Acting, Spring Return

Dimension

PN16                                                                  Unit: mm

DN A H1 H2 H5 H4
20 282 126 271 43 298
25 282 126 271 48 298
32 308 134 297 57 298
40 308 157 297 66 298
50 308 167 297 80 360
65 395 199 375 92 360
80 395 214 375 100 360
100 395 229 375 120 440
125 498 263 455 134 510
150 498 293 455 156 510
200 498 358 455 199 640
