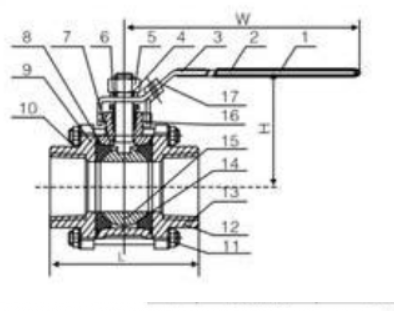

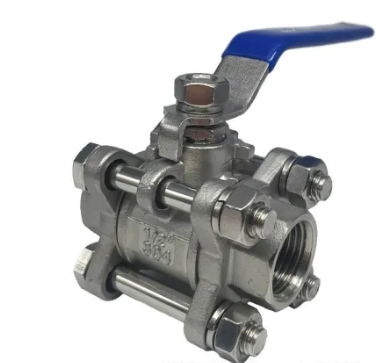

3 Piece Threaded Ball Valve
3 Piece Threaded Ball Valve provides secure shutoff and smooth flow control, allowing inline servicing while maintaining reliable operation under varying pressures and temperatures.
Starting at$99.98
Contact Us
1 / 2
Product Overview
Pressure Rating
ANSI Class 150-600 (PN16-PN100): Class 150 (275 PSI), Class 300 (720 PSI), Class 600 (1440 PSI). Three-piece design provides complete access for maintenance and field repair
Temperature Range
Operating Range: -196°C to 315°C (-320°F to 600°F). Excellent performance in cryogenic service and chemical processing. Titanium maintains strength at temperature extremes
Material Construction
Body: Titanium Grade 2 (ASTM B348) three-piece modular design with precision machined body segments
Ball: Solid Titanium Grade 2 with 0.4 Ra surface finish
Seats: Virgin PTFE or PEEK
Stem: Titanium Grade 2 with blow-out proof design
Seals: Viton or FFKM
Hardware: Titanium Grade 2
Connection Type
End Connections: RF Flanged (ANSI B16.5), RTJ Flanged, Socket Weld (SW), Butt Weld (BW), NPT/BSP Threaded. Available in all standard flange ratings with flat face, raised face, and ring-type joint facings
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
