Electric Actuated Valves

Electric Actuated Valves

African Valve is a premier Electric Actuated Valves Manufacturer in South Africa, delivering automation-ready valves for industries requiring remote control, precision flow regulation, and fast shut-off capabilities. Our electric actuated valves combine the reliability of industrial-grade valve designs with advanced electric actuators for seamless integration into automated process systems.

Function & Working

Electric actuated valves operate by converting electrical energy into mechanical torque to open, close, or modulate a valve. They enable automated control over fluid flow using signals from control systems, ensuring accuracy and responsiveness in pressure, temperature, or flow-sensitive processes.

Advantages

  • Ideal for remote operation and control

  • Available in on/off and modulating designs

  • Precise positioning with feedback and fail-safe options

  • Energy-efficient for long-term use

  • Low maintenance with high reliability

Types Offered

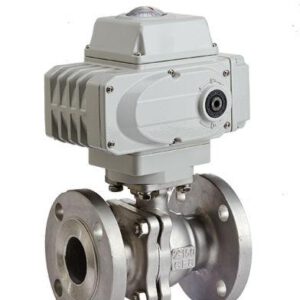

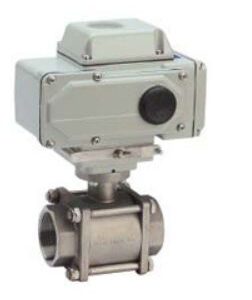

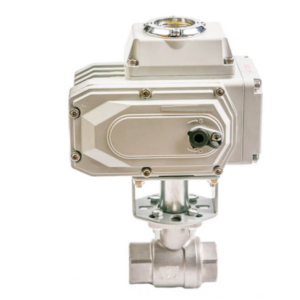

  • Electric Actuated Ball Valve

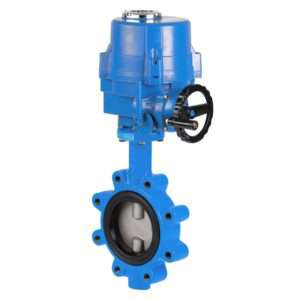

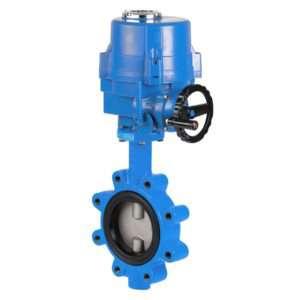

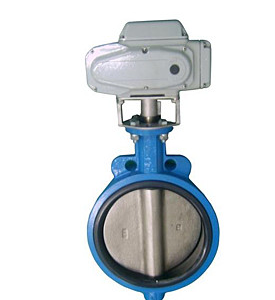

  • Electric Actuated Butterfly Valve

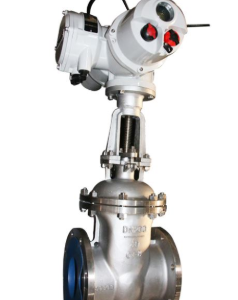

  • Electric Actuated Gate Valve

  • Electric Actuated Globe Valve

Industries Served

  • Water and Wastewater Treatment

  • Oil and Gas Pipelines

  • Power Generation and Distribution

  • Chemical and Petrochemical Processing

  • HVAC and District Cooling Systems

  • Food and Beverage (non-hazardous zones)

  • Marine and Offshore Applications

Key Components

  • Valve Body – Houses the flow path, available in various designs

  • Actuator Unit – Motorized drive with torque control and limit switches

  • Stem Assembly – Transfers motion from actuator to valve mechanism

  • Position Indicator – Displays valve open/closed status

  • Seal and Packing System – Ensures leak-proof sealing under pressure

  • Mounting Kit – ISO 5211 flange for actuator-to-valve compatibility

Technical Specifications

  • Design Standards: API 6D, ASME B16.34, EN 15714-2

  • Body Materials: WCB (ASTM A216), CF8M (SS316), CF8 (SS304), Ductile Iron, Bronze, Monel, Duplex, and Super Duplex

  • Trim Options: SS316, 17-4 PH, Monel, Hastelloy

  • Pressure Ratings: Class 150 to 900 / PN10 to PN160

  • Size Range: DN15 to DN1200

  • End Connections:

    • Flanged (RF/RTJ)

    • Butt Weld (BW – For permanent, high-pressure installation)

    • Socket Weld (SW – Compact for smaller piping)

    • Threaded (NPT – National Pipe Thread)

  • Actuation Options: Available with multi-turn or quarter-turn electric actuators in 24V, 110V, and 230V, with options for modulating, fail-safe, and IP67/IP68 protection.

  • Special Features:

    • Position feedback via 4–20mA or digital signals

    • Explosion-proof and weatherproof actuator housing

    • Thermal overload and torque protection

    • Supplied by an expert Electric Actuated Valves Manufacturer in South Africa
