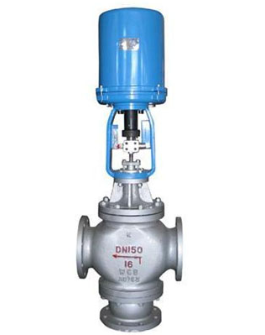

Electric Actuated Globe Control Valve
Electric Actuated Globe Control Valve provides accurate flow modulation through motorized actuation for reliable control in automated industrial pipelines.
Starting at$99.99
Contact Us
1 / 3
Product Overview
Pressure Rating
Body Rating: ANSI Class 150-600 (PN16-PN100): Class 150 (275 PSI), Class 300 (720 PSI), Class 600 (1440 PSI). Electric actuator: 24-480V AC/DC, thrust output 500-10000 lbs
Temperature Range
Service Temperature: -29°C to 260°C (-20°F to 500°F) for stainless steel body. High temperature versions up to 427°C (800°F) with special internals

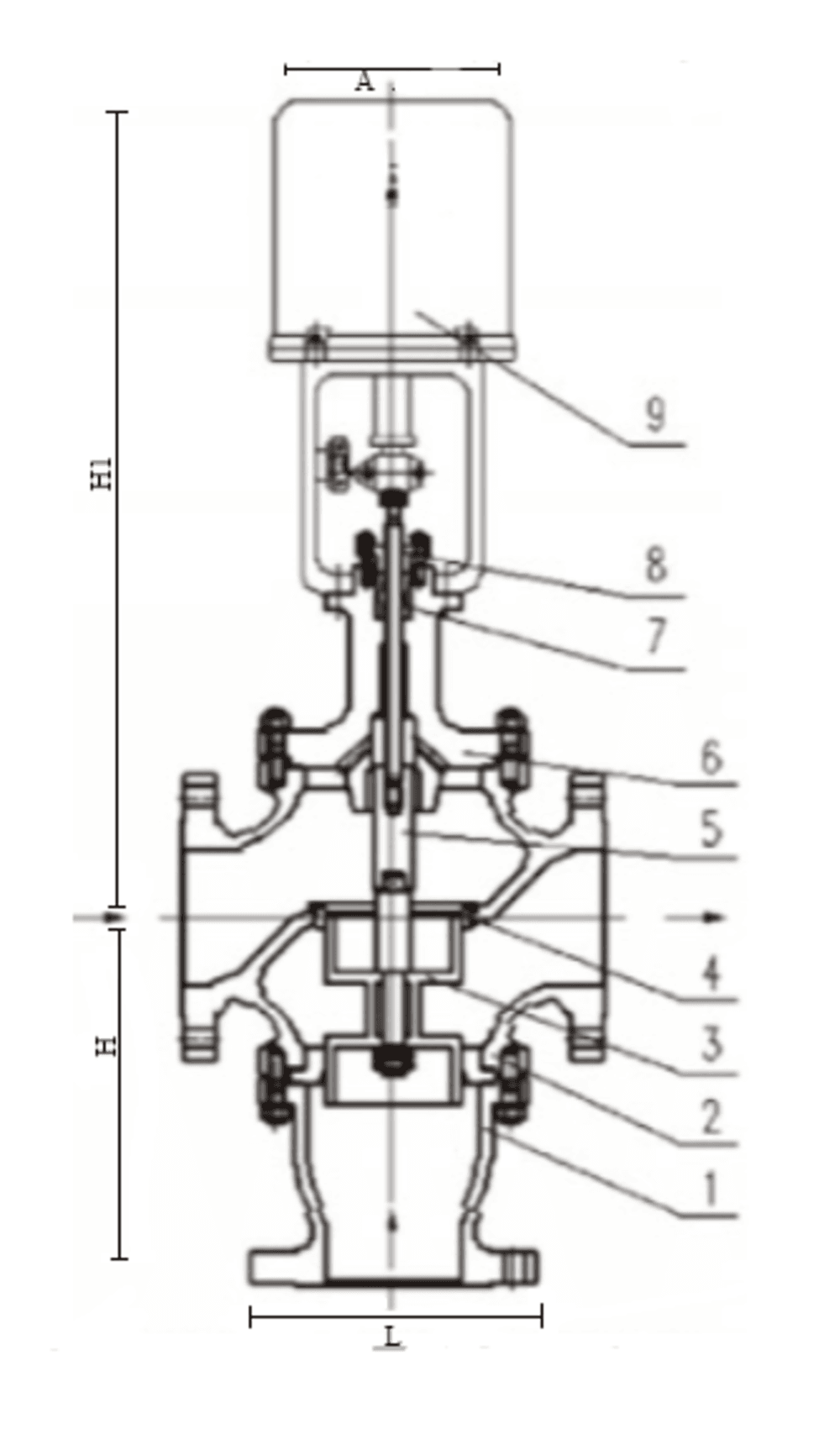

Material Construction
Body: Stainless steel 316 ASTM A351 CF8M with 3-way port configuration
Plug: 316 stainless steel with characterized flow profile
Cage: 316 SST with multi-port design
Seat: Integral hard-faced renewable
Actuator: Electric motor with digital positioner
Stem: 316 SST with guided design
Connection Type
Flanged (ANSI B16.5), Threaded (NPT/BSP)
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
$1,136.99
