High Performance • Durable
Industrial Awwa Y Strainer engineered for optimal flow control and long service life
African Valve is an Awwa Y Strainer Suppliers in Zambia, providing strainers for water distribution networks, pumping stations and industrial water projects in Nigeria, Egypt and South Africa.
Sediment, rust particles and construction debris can enter water pipelines during installation or routine operation. If these particles reach pumps, meters or control valves, they can cause excessive wear, obstruct small passages and interfere with normal operation. An AWWA Y Strainer helps prevent these problems by collecting solid particles before they reach downstream equipment.

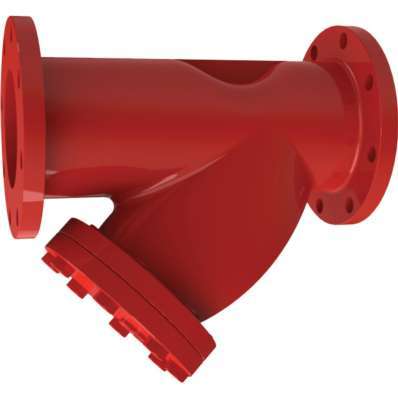

The strainer has a Y-shaped body containing a removable perforated or mesh screen. Water passes through the screen while larger particles are retained inside the collection chamber. The screen can be accessed through the cover for periodic cleaning.
Parameter | Specification |
|---|---|
Product Type | AWWA Y Strainer |
Design | Y Type / Removable Screen |
Size Range | DN50–DN300 |
Working Pressure | 200 / 300 psi |
Body Material | Ductile Iron ASTM A536 Grade 65-45-12 |
Screen Material | Stainless Steel SS304 / SS316 |
Screen Perforation | 1.5 mm / 3 mm perforations |
Cover Gasket | EPDM / NBR |
End Connection | Flanged / Grooved |
Operation | Static Mechanical Filtration |
Grooved Connection Standard | AWWA C606-22 |
Flange Standard | ASME B16.1 Class 125 |
Protective Coating | Fusion Bonded Epoxy to AWWA C550-24, where specified |
Inspection | Screen Inspection and Hydrostatic Pressure Testing |
Pressure Class Options: • Class 150: 275 PSI maximum working pressure • Class 300: 720 PSI maximum working pressure • Class 600: 1440 PSI maximum working pressure Design verification per ASME B16.34 Hydrostatic testing per API 598 standards Pressure-temperature ratings available
Pressure Classes: ANSI Class 150, 300, 600. PN16, PN25, PN40, PN64, PN100. Removable basket design for easy cleaning
Pressure Classes: ANSI Class 150, 300, 600. PN16-PN100. Perforation: 1/32" to 1/4" standard. NACE MR0175 compliant. Blow-off connection available
Standard Class Range: Class 150 / 300 Low Pressure Service: PN16 Medium Pressure Service: PN25 – PN50
