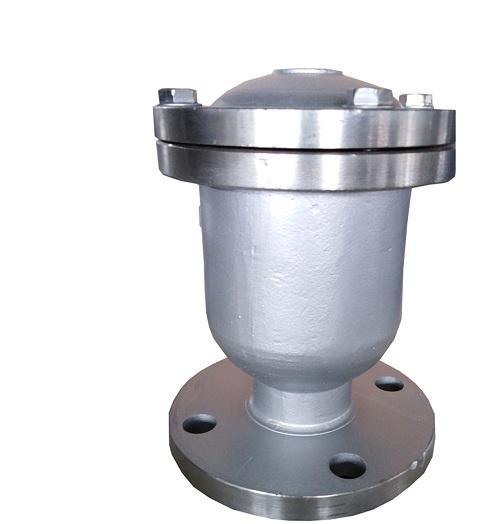

Single Orifice Air Valve

Single Orifice Air Valve

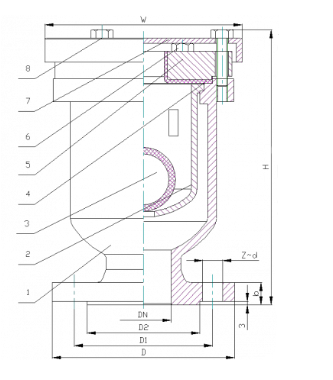

1. Body: Cast iron, Ductile Iron, Stainless Steel

2. Bucket: Cast iron, Ductile Iron, Stainless Steel

3. Float Ball: Stainless Steel

4. Gasket: NBR, EPDM

5. Inside Cover: Cast iron, Ductile Iron, Stainless Steel

6. Bolt: Carbon Steel, Stainless Steel

7. Outside Cover: Cast iron, Ductile Iron, Stainless Steel

8. Bolt: Carbon Steel, Stainless Steel

9. Bonnet: Cast iron, Ductile Iron, Stainless Steel

10. Cap : Cast iron, Ductile Iron

11. Stem: Stainless Steel

12. Stem Yoke: Stainless Steel

13. Plug: Stainless Steel

14. Top Plug: NBR+Stainless Steel

15. Plug Sleeve: Stainless Steel

Nominal Diameter: DN40 to DN200

Nominal Pressure: Class150 to Class300, PN16 to PN40

Design and Manufacture Standard: DIN3352

Flanged End Dimension: DIN2501

Inspection and Test: BS6755

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

PN16
