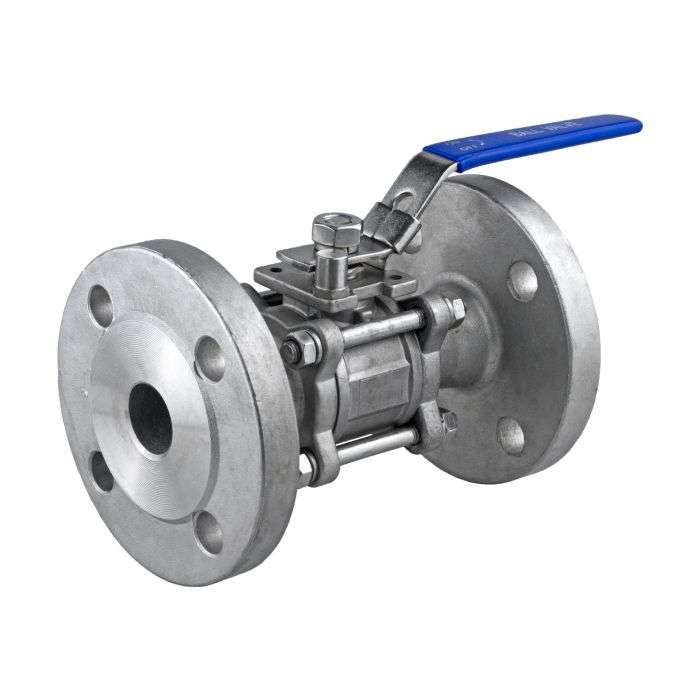

3 Piece Flanged Ball Valve
1.Body: CF8, CF8M, Cast Iron, Carbon Steel
2. Cap: CF8, CF8M, Cast Iron, Carbon Steel
3. Ball: CF8, CF8M, Cast Iron, Carbon Steel
4. Stem: SS304, SS316
5. Gland Nut: SS304, SS316
6. Seat: PTFE, RTFE
7. Seal: PTFE
8. Packing: PTFE
9. Thrust Washer: PTFE
10. Spring Washer: SS304
11. Stem Nut: SS304
12. Bolt: SS304
13. Nut: SS304
14. Spring Washer: SS304
15. Handle: Stainless Steel
16. Locking Device: Stainless Steel
17. Handle Sleeve: PVC
Full port or Reduced Port
Investment casting
Blow-out proof stem
Anti-static device (option)
Locking device
Nominal Size: DN15 to DN100
Nominal Pressure: PN1.0 to PN4.0
Working Temperature: -20?C to +180?C
Face to Face Dimension: DIN3202
Inspection Testing: API598, EN12266

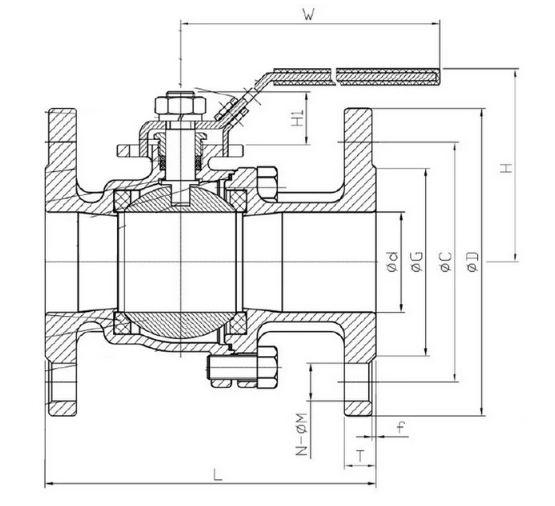

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm
| Size | d | D | C | G | f | T | N-M | L | H | H1 | W | W1 | Kg |
| 1/2? | 15 | 95 | 65 | 45 | 2 | 16 | 4-14 | 115 | 72 | 16.5 | 123 | 6.5 | 2.5 |
| 3/4? | 20 | 105 | 75 | 58 | 2 | 18 | 4-14 | 120 | 76 | 16.5 | 123 | 6.5 | 3.5 |
| 1? | 25 | 115 | 85 | 68 | 2 | 18 | 4-14 | 125 | 92 | 23.5 | 183 | 9.5 | 4.5 |
| 1 1/4? | 32 | 140 | 100 | 78 | 2 | 18 | 4-18 | 130 | 95 | 21.0 | 153 | 8 | 6.0 |
| 1 1/2? | 40 | 150 | 110 | 88 | 3 | 18 | 4-18 | 140 | 125 | 37.5 | 246 | 12 | 7.0 |
| 2? | 50 | 165 | 125 | 102 | 3 | 20 | 4-18 | 150 | 132 | 37.5 | 246 | 12 | 10.0 |
| 2 1/2? | 65 | 185 | 145 | 122 | 3 | 18 | 4-18 | 170 | 166 | 47.0 | 285 | 16 | 14.5 |
| 3? | 80 | 200 | 160 | 138 | 3 | 20 | 4-18 | 180 | 176 | 47.0 | 285 | 16 | 19.0 |
| 4? | 100 | 220 | 180 | 158 | 3 | 20 | 8-18 | 190 | 189 | 47.0 | 385 | 16 | 32.0 |
