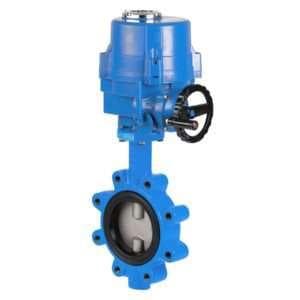

Electric Actuated Lug Butterfly Valve
| Body Material | |
| Class | |
| Disc | |
| Voltage | |
| Size |
Electric Actuated Lug Butterfly Valve
Body: Ductile Iron, SS304, SS316, WCB
Disc: SS316, SS304, Ductile Iron
Seal: EPDM, PTFE, NBR, VITON
End Connection: Lug Type
Nominal Size: DN50 to DN800
Nominal Pressure: PN10, PN16 PN25, Class150
Actuation Type: Electric Actuated
Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V
Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V
Power Supply: 24V AC, 24V DC, 110V AC, 230V AC
Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm
| DN | L | L1 | L2 | D | D1 | n-? d |
| 50 | 42 | 178 | 121 | 52.9 | 120 | 4-?23 |
| 65 | 44.7 | 178 | 121 | 64.5 | 136.2 | 4-?26.5 |
| 80 | 45.2 | 210 | 131 | 78.8 | 160 | 8-?18 |
| 100 | 52.1 | 210 | 131 | 100.4 | 185 | 4-?24.5 |
| 125 | 54.4 | 210 | 131 | 123.3 | 215 | 4-?23 |
| 150 | 55.8 | 309 | 160 | 155.6 | 238 | 4-?25 |
| 200 | 60.6 | 309 | 160 | 202.5 | 295 | 4-?25 |
| 250 | 65.6 | 309 | 160 | 250.5 | 357 | 4-?29 |
| 300 | 76.5 | 309 | 177 | 301.6 | 407 | 4-?29 |
| 350 | 76.5 | 309 | 177 | 333.3 | 467 | 4-?30 |
| 400 | 86.5 | 309 | 177 | 389.6 | 515 | 4-?30 |
| 450 | 105.6 | 309 | 177 | 440.51 | 565 | 4-?30 |
| 500 | 131.8 | 309 | 177 | 491.5 | 620 | 4-?33 |
| 600 | 152 | 309 | 177 | 592.5 | 725 | 4-?36 |
| 700 | 163 | 309 | 177 | 695 | 840 | 4-?36 |
| 800 | 188 | 309 | 177 | 794.7 | 950 | 4-?39 |
