Monel Globe Valve

Home > Speciality Valve
Image 724
Image 725

Monel Globe Valve

Body Material
Class
Size

Monel Globe Valve

Body: Monel 400, Monel K500, Monel 600, Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20, CN7M,

Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Disc: Monel 400, Monel K500, Monel 600,Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy 20,

CN7M, Hastelloy, Carbon Steel, WC6, WC9, ?C5, C12, LCB, CF3M

Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20, Duplex Stainless Steel, Super

Duplex Stainless Steel

Gland Packing: Graphite, PTFE

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated

Nominal Size: DN50 to DN600

Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to 2500

Design and Manufacture Standard: ANSI B16.34, API 600, API 6D, API 603, BS1414

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End: ANSI B16.5, MSS-SP-44 to API605

Butt welded End: ANSI B16.5

Inspection and Test: API 598, API 6D

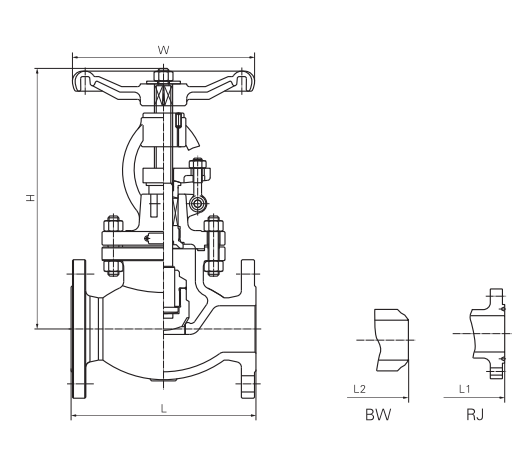

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit:mm? ? ??

Class150

DN L L1 L2 H W
50 203 216 203 350 220
65 216 229 216 362 250
80 241 254 241 385 280
100 292 305 292 400 320
125 356 369 356 455 320
150 406 419 406 537 400
200 495 508 495 707 450
250 622 635 622 788 560
300 698 711 698 820 580
350 787 800 787 898
400 914 927 914 930
450 978 991 978 980
500 978 991 978 1028
600 1295 1308 1295 1134
