Incoloy Globe Valve

$550.00$2,386.00

Close
Price Summary
  • $2,386.00
  • $550.00
  • $550.00
In Stock
Clear
Compare
Description

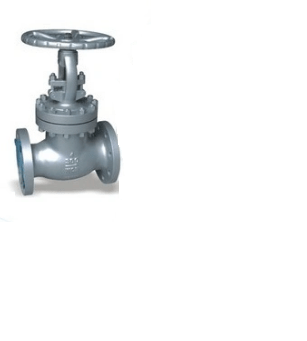

Incoloy Globe Valve

Body: Incoloy 800, Incoloy 800H, Incoloy 825, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Disc: Incoloy 800, Incoloy 800H, Incoloy 825, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316

Gland Packing: Graphite, PTFE

End Connections: Flanged

Operation: Handwheel Operated, Electric Actuated, Pneumatic Actuated

Nominal Size: DN50 to DN600

Nominal Pressure: PN1.0 to 25MPa, Class150 to Class2500

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352

Face to Face Dimension: ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202

Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605

Butt welded End Dimension: ANSI B16.5

Inspection and Test: API 598, API 6D, DIN 3230

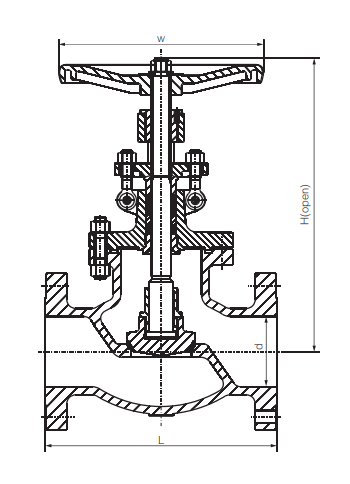

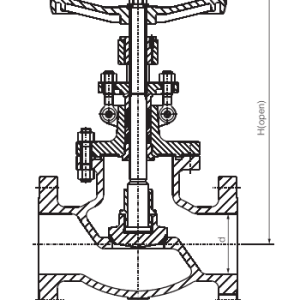

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

Class 150

DN

L

dHH1WW1
RFRTJBW
5020321620351330200
6521622921664360250
8024125424176390280
100292305292102445300
125356369356127480350
150406419406152520556350310
200495508495203600658400310
250622635622254773805450460
300698711698305880955500460
3507878007873379501100600460
4009149279143879961175600460
5009789919784881450600
6001295130812955901690600
Additional information
Body Material

Incoloy

Class

150, 300

Size

1", 2", 3"
