Hastelloy C276/B3 Gate Valve

$1,479.38$19,983.00

6% Off
Close
Price Summary
  • $1,580.38
  • $1,479.38
  • 6%
  • $1,479.38
  • Overall you save $101.00 (6%) on this product
In Stock
Clear
Compare
Description

Hastelloy C276/B3 Gate Valve

Connections: Flanged, Threaded, Socket welded, ButtWeld

Pressure rating: PN 1.0 to 25Mpa, Class 150 to 600

Size: DN 6 to 500 mm, NPS 1/4? to 20?

Temperature: -198?c to 450?c

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414

Face to face (end to end): ANSI B16.10, API 6D

Flanged connection: 2? to 24? , ANSI B16.5, 26? to 36?,? MSS-SP-44 to API605

Test and inspection: API 598, API 6D

Butt welded end: ANSI B16.5

Operations: Handwheel, Electric Actuated, Pneumatic Actuated

Body: Hastelloy c276/B3

Gate, Disc: Hastelloy, 13Cr

Stem: Hastelloy, 13Cr

Seat Ring: SS304/Nylon, Stellite, SS304, SS316

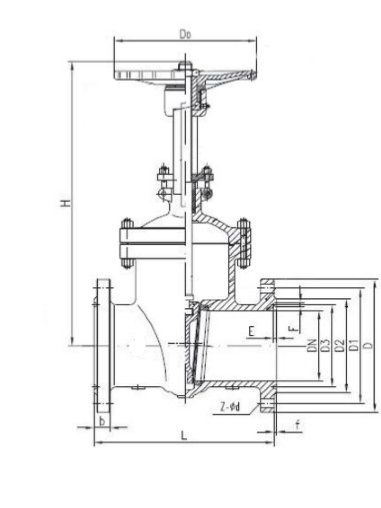

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

DNLHDD1
151301759565
2015018010575
2516021011585
32180280140100
40200350150110
50250358165125
65270375185145
80280433200160
100300502220180
125325612250210
150350676285240
200400820340295
250450969405355
3005001142460410
3505501280520470
4006001452580525

?

Additional information
Body Material

Hastelloy C276/B3

Class

150, 300

Size

1", 2", 3"
