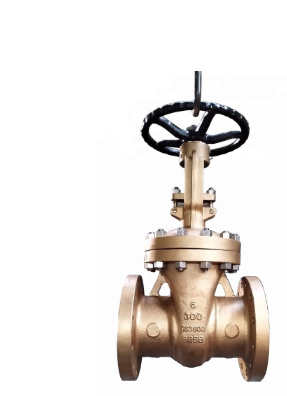

Bronze Flanged Gate Valve

Bronze Flanged Gate Valve

Body: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Disc: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Bonnet: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Stem: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Wedge: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Bonnet Gasket: SS304+ Graphite

Packing: Graphite

End Connection: Flanged, Buttweld, Socketweld

Operation: Handwheel, Electric Actuated, Pneumatic Actuated

Nominal Size: DN50 to DN500

Nominal Pressure: Class150 to Class2500

Design and Manufacture Standard: API 6D, API 608, BS5351

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Connection: ANSI B16.5

Buttweld End: ANSI B16.25

Inspection and Test: API 598, API 6D

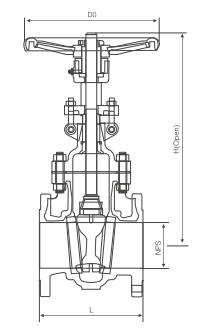

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm
