Duplex 1B 3 PC Ball Valve Manufacturer in Africa

Chemical transfer, saline water and chloride-bearing process systems often need a valve material with more strength and corrosion resistance than standard austenitic stainless steel. A three-piece body also allows internal servicing without replacing the valve assembly. African Valve is a prominent Duplex 1B 3 PC Ball Valve Manufacturer  in Africa, supplying South Africa, Nigeria, Egypt, Angola, other African countries and export markets.

What Is Duplex Grade 1B?

A995 Grade 1B of ASTM specification is a cast duplex type austenitic-ferritic stainless steel. It is an alloy that is used in making valves, flanges, and fittings as pressure-containing parts. Its duplex composition makes it stronger while being tougher because of its ability to resist chloride-induced pitting corrosion and stress corrosion cracking. However, the suitability of this type of material is dependent on temperature, chlorides, pH, crevices, and quality of casting.

Three-Piece Construction and Operation

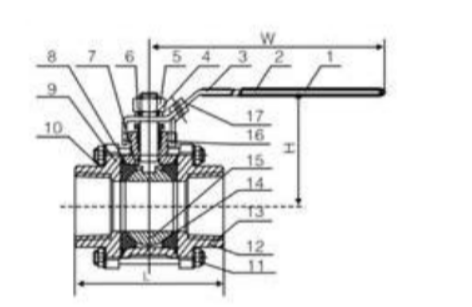

Valve features center body which consists of the ball, the seats, and the primary seals, sandwiched between two end bodies. Such configuration enables direct access to inner components when doing maintenance. It is possible to remove center body leaving the end bodies in the pipeline depending on the end connections and the pipe routing. Quarter rotation of the stem turns the ball from position "open" to "closed". Full-bore configuration ensures that the port diameter is close to the pipe diameter. Such valve design is used in pipelines where pressure drop and drainability are important. Reduced-bore version allows having smaller body size when small flow area is acceptable.

Body, Ball and Seat Selection

Grade 1B is a cast material, so it is normally used for the body and end sections. The ball, stem, gland parts and seat retainers may use compatible duplex grades selected for strength, corrosion resistance and galling control. Lower-alloy trim can become the first point of attack even when the body remains sound.PTFE and RPTFE seats suit many clean water and chemical services. PEEK may be considered for higher pressure or temperature, while metal seats are used where solids, erosion or frequent cycling make soft seats unsuitable. Optional arrangements include a blowout-resistant stem, anti-static device, fire-tested construction, cavity-pressure relief and ISO 5211 actuator mounting.

Technical Specifications

Size Range: DN15 to DN200

Pressure Ratings: ASME Class 150 to Class 600

Design Standards: API 608, ISO 17292 and ASME B16.34

Testing Standard: API 598

End Connections: Flanged, threaded, socket weld or butt weld

Operation: Lever, gearbox, pneumatic actuator or electric actuator

Body Material: ASTM A995 Grade 1B

Body Construction: Three-piece

Bore Type: Full bore or reduced bore

Seat Options: PTFE, RPTFE, PEEK or metal seat

API 608 applies to metal ball valves with flanged, threaded and welding ends, while ASME B16.34 addresses pressure-temperature ratings, materials, examination, testing and marking for applicable valve construction.

Performance Characteristics

The duplex body provides higher mechanical strength than common austenitic cast stainless steel. The removable centre section shortens maintenance work, and quarter-turn operation gives rapid isolation. Seat choice, torque and cavity pressure should still be checked at the maximum differential pressure and temperature.

Industrial Applications

Duplex 1B three-piece ball valves are considered for desalination support systems, saline process water, chemical dosing, produced-water treatment, pulp and paper service, marine utilities and selected oil and gas lines. They are not automatically suitable for every seawater duty; temperature, oxygen level, crevices and heat treatment remain important.

Manufacturing and Inspection

Material Test Certificates are checked against the casting heat numbers. PMI may be used on the body, ball and stem, while ferrite control, heat-treatment records and NDT may be required by the project. Hydrostatic shell and seat-leakage tests verify containment and shutoff before dispatch.

Supply for Duplex Valve Projects

African Valve supplies Duplex Grade 1B three-piece ball valves for water, marine, chemical and process projects across Africa. The enquiry should include fluid composition, chlorides, pressure, temperature, end connections, bore, seat material, actuation and inspection requirements.
