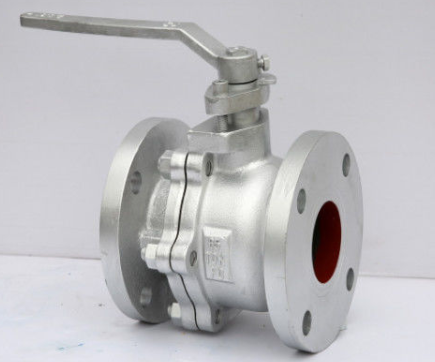

Incoloy 2-Piece Ball Valve
High Performance • Durable • Leak Proof
High-temperature Incoloy ball valve with excellent oxidation resistance for extreme thermal cycling applications.
Technical Specifications
Key Features & Applications
Incoloy 2 piece ball valves are quarter-turn isolation valves used in industrial services where elevated temperature, oxidation or corrosive process conditions require a nickel-based alloy. Incoloy 2 Piece Ball Valve Manufacturer in Nigeria can supply configurations using grades such as Incoloy 800, 800H, 800HT and 825, with the alloy selected according to the operating temperature, pressure, process medium and corrosion mechanism.
Technical Specifications
Parameter | Typical Specification |
Product Type | Incoloy 2 Piece Ball Valve |
Ball Design | Floating |
Body Construction | Two-Piece |
Common Alloy Grades | Incoloy 800 / 800H / 800HT / 825 |
Nominal Size | ½–24 (DN15–DN600), depending on design |
Pressure Class | ASME Class 150–600, depending on design |
End Connection | Flanged / Butt Weld / Threaded / Socket Weld |
Seat | PTFE / RPTFE / PEEK / Metal, depending on service |
Operation | Manual / Gear / Actuated, depending on size and design |
Testing | API 598 / EN 12266-1, where applicable |
Materials & Components
Body: Incoloy 800 / 800H / 800HT / 825
Ball: Nickel Alloy / Stainless Steel, depending on design
Stem: Stainless Steel / Nickel Alloy
Seat: PTFE / RPTFE / PEEK / Metal
Packing: Graphite / PTFE, depending on temperature
Gaskets: Graphite / Application-Specific Material
Fasteners: Stainless Steel / Alloy Steel, depending on design
African Valve manufactures Incoloy 2 Piece Ball Valves for chemical, refinery and high-temperature projects across Africa. The enquiry should include the exact Incoloy grade, fluid chemistry, pressure, temperature, bore, seat material, end connection, actuator and inspection scope.
