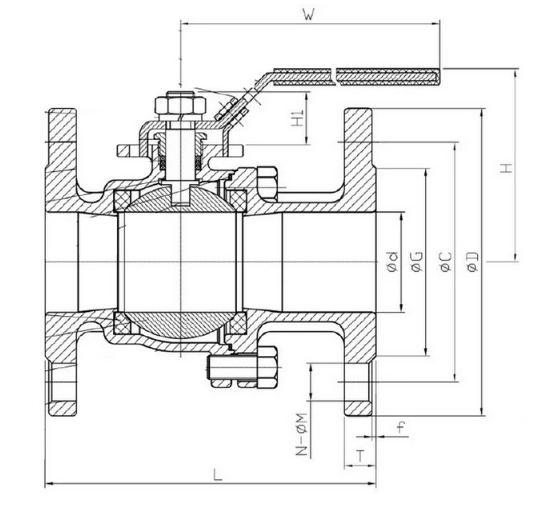

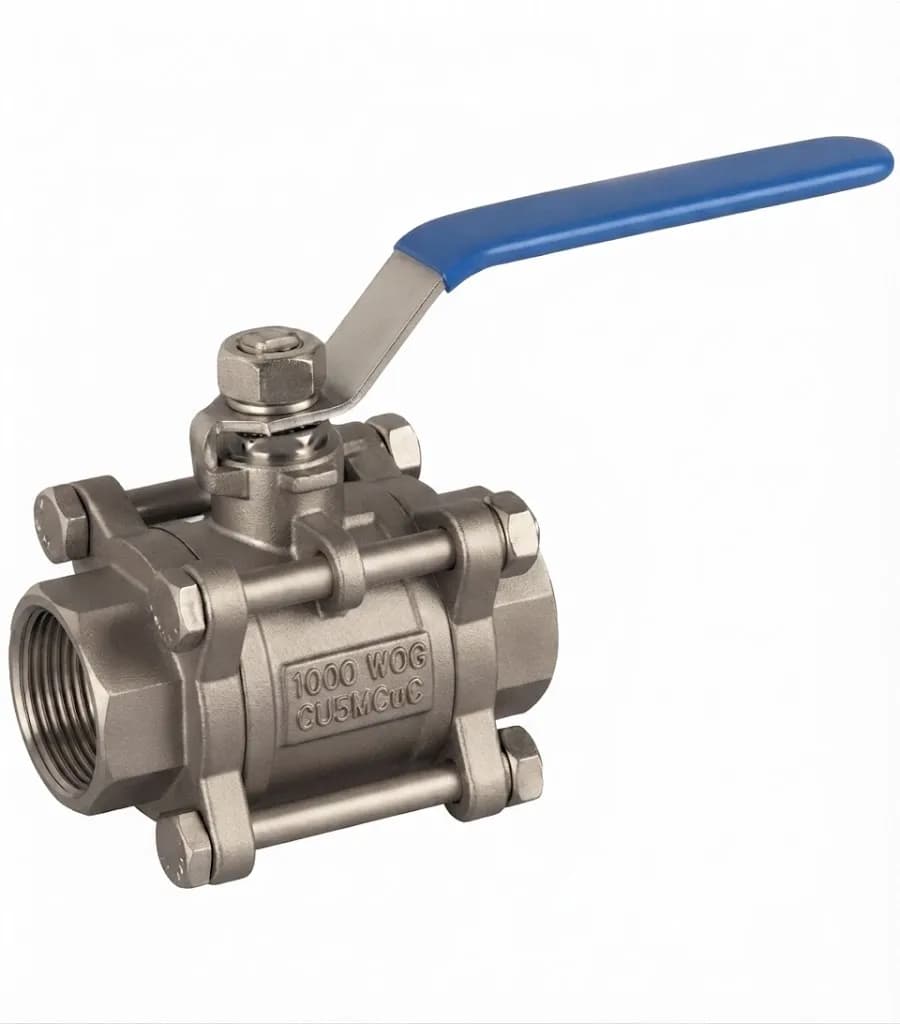

Incoloy 3-Piece Ball Valve

For demanding isolation applications, Incoloy 3 Piece Ball Valve Manufacturer in Nigeria provide quarter-turn ball valves designed with three-piece construction and nickel-alloy materials. Incoloy 800, 800H and 825 can be selected according to the operating temperature, process medium and corrosion conditions. The three-piece arrangement also provides convenient access to internal components during maintenance.

Technical Specifications

Parameter
Typical Specification
Product Type
Incoloy 3 Piece Ball Valve
Ball Design
Floating
Body Construction
Three-Piece
Common Alloy Grades
Incoloy 800 / 800H / 800HT / 825
Size Range
DN15–DN100 (½"–4")
Pressure Class
ASME Class 150–600
End Connection
Threaded / Flanged
Seat
PTFE / RPTFE / PEEK / Metal, depending on service
Operation
Manual / Pneumatic / Electric, depending on design
Testing
API 598 / EN 12266-1, where applicable
Materials & Components
Body: Incoloy 800 / 800H / 800HT / 825
Ball: Incoloy, SS304 / SS316
Stem: SS304 / SS316
Seat: PTFE / RPTFE / PEEK / Metal
Packing: Graphite / PTFE
Body Bolting: Stainless Steel / Alloy Steel
Gaskets: Graphite / Application-Specific Material

African Valve manufactures Incoloy 3 Piece Ball Valves for chemical, refinery and thermal-service projects across Africa. The RFQ should state the exact alloy grade, fluid composition, pressure, temperature, bore, end connection, seat material, maintenance requirement, actuator and inspection scope.

Parameter	Typical Specification
Product Type	Incoloy 3 Piece Ball Valve
Ball Design	Floating
Body Construction	Three-Piece
Common Alloy Grades	Incoloy 800 / 800H / 800HT / 825
Size Range	DN15–DN100 (½"–4")
Pressure Class	ASME Class 150–600
End Connection	Threaded / Flanged
Seat	PTFE / RPTFE / PEEK / Metal, depending on service
Operation	Manual / Pneumatic / Electric, depending on design
Testing	API 598 / EN 12266-1, where applicable
