Features:
- Robust stiffened body fully cast in CI, CS and SS MOC
- Large throat opening allowing for high filling efficiency
- Heavy Shaft to avoid deflections and body to rotor contact-wear
- External bearing housing to prevent contamination and wear
- Precision machining providing minimum air leakage
- Extensive range of rotor options available giving wide range of applications
- Packing gland type or graphite ring seal available
- Body mounted vent openings
- Smooth low-noise operation
- Maximum axial and radial clearance of 0.2 mm for minimum air leakage comes standard
- Chain sprocket or Direct drive options available with ABB or CG motors.
Specifications:

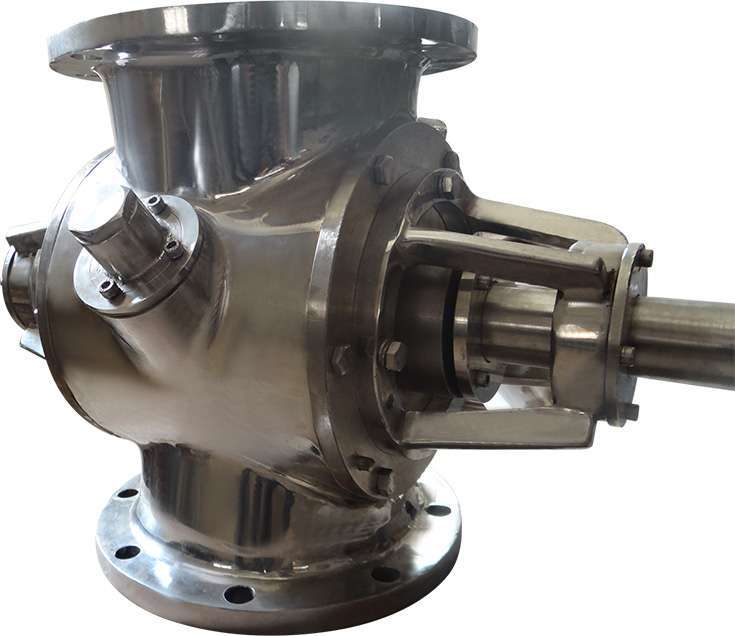

Model Number: rotary airlock valve
Application:General
Material:cast iron, cast ironcarbon steel/stainless steel
Temperature of Media:Normal Temperature
Pressure:High Pressure
Power:Pneumatic, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW, 3kW, 4kW
Media:Gas
Port Size:1/2″
Structure:casting
Standard or Nonstandard:Standard
Size 1:100 mm to 1200 mm
Size 2:5″ to 30″
Gap between rotor and body:0.08 mm to 0.25 mm
Capacity : 2L/Rotation
