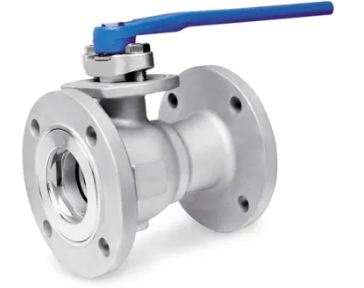

1 Piece Flanged Ball Valve

Body Material
Class
Size

1 Piece Flanged Ball Valve

Design & manufacture: EN12516, DIN3357

Face to Face: DIN 3202, EN558-1, DN15 to DN100 (F4,F14), DN125 to DN250 (F5,F15)

Flange End: EN1092-2, ISO7005-2

Nominal Pressure: PN16, PN25, PN40, PN63

Pressure testing: EN1266, ISO 5208, DIN 3230

Nominal Size: DN15 to DN250

Body: Cast Iron, Cast Steel, CF8, CF8M

Ball: SS304, SS316

Seat: PTFE, RPTFE

Gasket: PTFE, RPTFE

Bolt: Stainless Steel

Nut: Stainless Steel

Stem: SS304, SS316

Handle: Stainless Steel

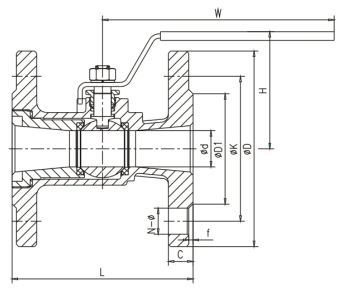

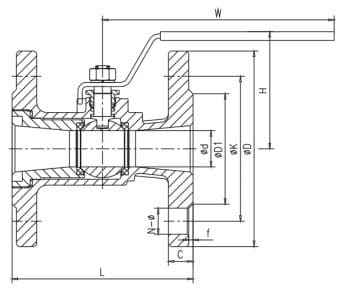

Dimensions                                                                                                        Unit: mm

DN φd L D K D1 C f H N-φ W
15 12 90 95 65 46 14 2 60 4-14 110
20 15 105 105 75 56 14 2 65 4-14 120
25 20 110 115 85 65 15 2 75 4-14 150
32 25 125 135 100 75 16 3 83 4-18 160
40 32 136 145 110 85 18 3 90 4-18 160
50 38 155 160 125 100 18 3 100 4-18 180
65 50 170 180 145 118 20 3 110 4-18 200
80 65 200 195 160 132 20 3 130 8-18 250
100 80 230 215 180 150 22 3 150 8-18 270
