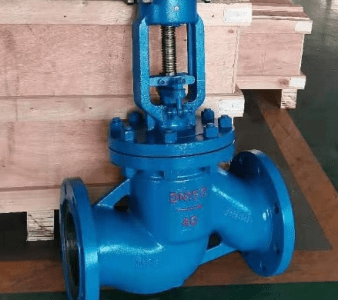

Carbon Steel Bellows Seal Globe Valve Manufacturer in Africa

Product Introduction

Applications involving high-temperature steam, thermal fluids, and hazardous process media require valves that minimize the possibility of stem leakage while maintaining accurate flow regulation. A Carbon Steel Bellows Seal Globe Valve combines the throttling capability of a globe valve with a welded metallic bellows that forms a leak-tight seal around the stem. Manufactured from carbon steel, the valve offers high mechanical strength and is suitable for moderate to high-pressure industrial services. African Valve is a Well-known Carbon Steel Bellows Seal Globe Valve Manufacturer in Africa, manufacturing and supplying valves in various pressure classes, end connections, and operating configurations for projects across Nigeria, Egypt, South Africa, Kenya, Ghana, and other African countries, along with international export destinations.

Why Is a Carbon Steel Bellows Seal Globe Valve Used?

Carbon Steel Bellows Seal Globe Valves are installed where controlled flow and external leak prevention are equally important. The welded bellows isolates the process media from the atmosphere, reducing emissions while protecting the stem packing from direct exposure. A secondary graphite packing serves as a backup seal, providing additional protection during extended operation. These valves are commonly used for steam, hot oil, hydrocarbons, condensate, gases, and other industrial process fluids where environmental protection and operational safety are key requirements.

Design & Working Principle

The valve operates through a threaded stem connected to a movable disc that travels vertically toward or away from the valve seat. As the handwheel or actuator rotates, the welded stainless steel bellows expands and contracts with stem movement while maintaining a sealed barrier around the stem. The disc gradually regulates the flow until it seats firmly to achieve positive shut-off. The carbon steel body provides structural strength for demanding operating conditions, while bolted bonnet construction and renewable seat rings simplify maintenance when required.

Materials & Construction

The valve is manufactured using:

Carbon Steel – ASTM A216 WCB
Carbon Steel Forging – ASTM A105
Stainless Steel Bellows
Stainless Steel Trim
Graphite Packing

Construction features include:

Welded Multi-ply Bellows
Secondary Graphite Packing
Bolted Bonnet Design
Blow-out Proof Stem
Renewable Seat Rings
Outside Screw & Yoke (OS&Y)
Flanged, Butt Weld, and Socket Weld End Connections

Technical Specifications

Size Range: DN15 to DN600 (½" to 24")
Pressure Ratings: Class 150, 300, 600
Design Standards: API 623, ASME B16.34
Face-to-Face: ASME B16.10
Testing Standard: API 598
End Connections: Flanged, Butt Weld, Socket Weld
Operation: Handwheel, Gear, Pneumatic, Electric, Hydraulic

Industrial Applications

Carbon Steel Bellows Seal Globe Valves are widely used in:

Oil & Gas
Petrochemical Plants
Power Generation
Chemical Processing
Steam Distribution Systems
Marine & Offshore
Mining
Industrial Utility Systems

Product Features

Welded bellows minimizes stem leakage
Carbon steel body provides high mechanical strength
Secondary graphite packing offers additional sealing protection
Suitable for throttling and shut-off applications
Available in manual and automated configurations
Manufactured according to internationally recognized engineering standards

Manufacturing & Inspection

African Valve manufactures Carbon Steel Bellows Seal Globe Valves according to international engineering standards and customer project specifications. Every valve undergoes dimensional inspection, hydrostatic shell testing, seat leakage testing, bellows integrity testing, operational testing, and final quality verification before dispatch. Material Test Certificates (MTC), Pressure Test Reports, PMI reports, NDT reports, and third-party inspection documentation are available upon request.

Supply Across Africa

African Valve supplies Carbon Steel Bellows Seal Globe Valves to power plants, refineries, petrochemical facilities, steam distribution networks, marine installations, mining operations, and industrial processing projects throughout Nigeria, Egypt, South Africa, Kenya, Ghana, and other African countries. Valves are available in multiple pressure classes, end connections, and actuation systems to meet diverse industrial operating requirements.
