Titanium Gr.5 2piece Flanged Ball Valve

$1,434.00$3,234.00

7% Off
Close
Price Summary
  • $1,535.00
  • $1,434.00
  • 7%
  • $1,434.00
  • Overall you save $101.00 (7%) on this product
In Stock
Clear
Compare
Description

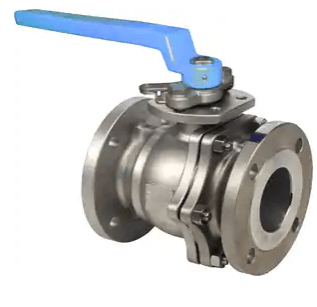

Titanium Gr.5 2piece Flanged Ball Valve

Body: Titanium Grade 2, Titanium Grade 5, CF8, CF8M, Cast Iron, Carbon Steel

Ball: Titanium Grade 2, Titanium Grade 5, CF8, CF8M, Cast Iron, Carbon Steel

Stem: SS304, SS316

Gland Nut: SS304, SS316

Seat: PTFE, RTFE, PPL

Seal: PTFE

Packing: PTFE, Graphite

Nominal Size: 2? to 8?

Nominal Pressure: Class 150 to Class 600, PN16 to PN63

End Connection: Flanged

Handle: Lever Handle, Locking Device Handle

Operation: Manual, Pneumatic, Electric Actuated

Design and Manufacture Standard: ASME B16.34, API 6D

Face to Face Dimension: DIN3202, EN1266, ANSI B16.10

Flanged End Dimension: ANSI B16.5

Buttweld Dimension: ANSI B16.25

Inspection and Testing: API 598

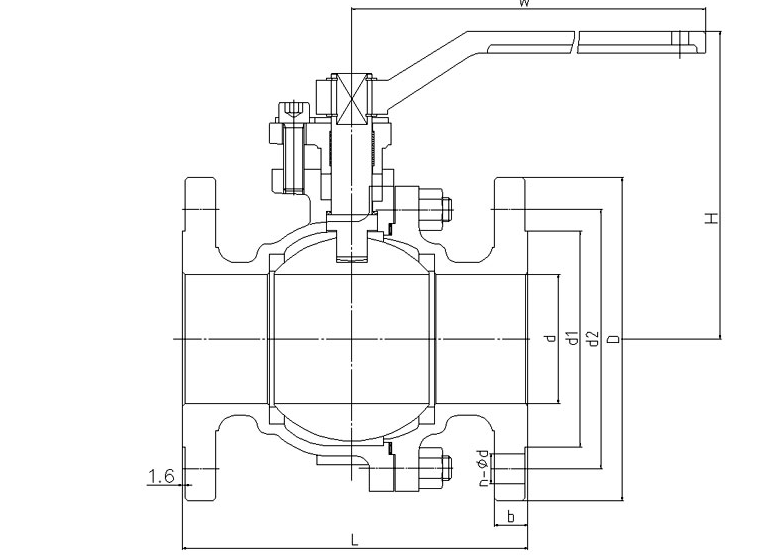

Dimensions

NPSin22 1/234568
dmm516476102127152203
L(RF)mm216241283305381403502
d1mm92105127157186216270
d2mm127149168.5200235270330
Dmm165190210254279318381
bmm23262932353742
n-?dmm8-198-228-228-228-2212-2212-25
Hmm140160180208220290300
Wmm2002902903606008001000



Additional information
Body Material

Titanium

Class

1000PSI, 150, PN63

Connection Type

Flanged, Threaded or Welded

Size

1", 1/2", 3/4"
