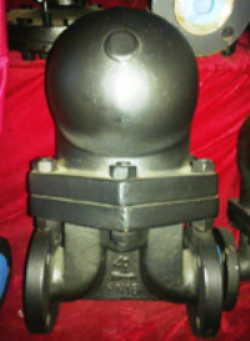

Ball Float Steam Trap
Body: Carbon Steel, Stainless Steel, Ductile Iron
Float ball: SS304
Bolt: SS304
Bracket: SS304
Pin: SS304
Bonnet: Carbon Steel, CF8
Disc: 2Cr13, SS304
Seat: 2Cr13, SS304
Gasket: Graphite+SS304
Nominal Diameter: DN15 to DN100
Nominal Pressure: PN10 to PN64
Design and Manufacture: EN26704, ISO6552
Face to Face Dimension: EN26554
Inspection and Test: EN26948

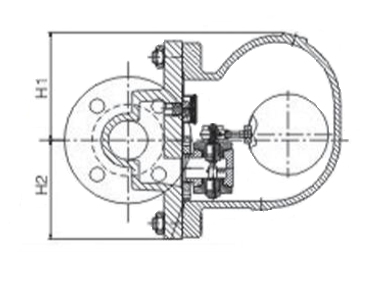

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm
| DN | L | H1 | H2 |
| 15 | 150 | 115 | 80 |
| 20 | 150 | 115 | 80 |
| 25 | 160 | 115 | 80 |
| 32 | 230 | 150 | 100 |
| 40 | 230 | 150 | 100 |
| 50 | 230 | 150 | 100 |
| 65 | 450 | 350 | 170 |
| 80 | 450 | 350 | 170 |
| 100 | 450 | 350 | 170 |
