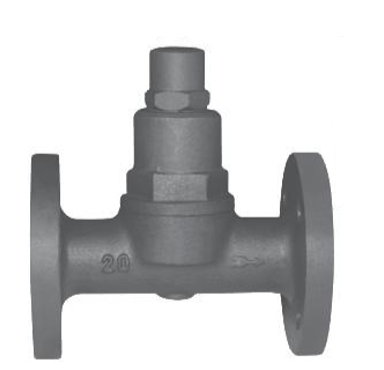

Bimetallic Steam Trap
Body: Carbon Steel, Stainless Steel
Cover: Stainless Steel
Sealing Disc: Stainless Steel
Cap: Stainless Steel
Nominal Diameter: DN15 to DN50
Nominal Pressure: Class150 to Class300, PN16 to PN40
Design and Manufacture: EN26704, ISO6552
Face to Face Dimension: EN26554
Inspection and Test: EN26948

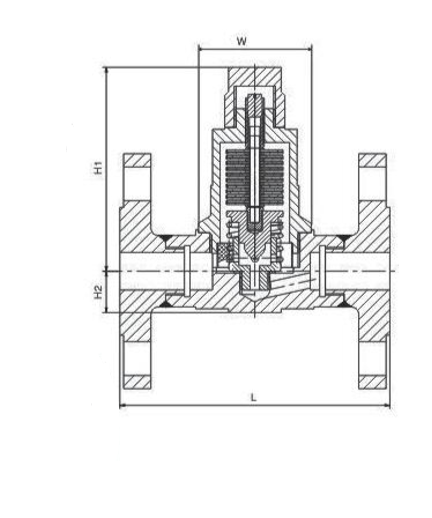

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm
| DN | L | H1 | H2 |
| 15 | 150 | 111 | 23 |
| 20 | 150 | 111 | 23 |
| 25 | 160 | 111 | 26 |
| 32 | 210 | 118 | 27 |
| 40 | 230 | 123 | 30 |
| 50 | 230 | 123 | 30 |
