Duplex Globe Valve

Body Material
Class
Size

Duplex Globe Valve

Body: Duplex Stainless Steel 4A, 5A, 6A, Super Duplex Stainless Steel, Alloy 20, Hastelloy, Titanium, Stainless Steel

Disc: A182 F51, F53, F55

Disc Nut: A182 F51, F53, F55

Stem: A182 F51, F53, F55

Nut: A194.4

Bolt: A193 B16

Gasket: Stainless Steel+Graphite

Backseat: A182 F51, F53, F55

Bonnet: A890 4A, A890 5A, A890 6A

Packing: Graphite, PTFE

Pin: A182 F6a

Gland: A182 F316L

Gland Follower: A351 CF8

Stem Nut: Copper Alloy

Nominal Size: DN50 to DN400

Nominal Pressure: Class150 to Class1500, PN16 to PN63

End Connection: Flanged, Buttweld, Socketweld

Operations: Handwheel, Electric Actuated, Pneumatic Actuated

Design and Manufacture Standard: BS1873, ASME B16.34

Face to Face Dimensions: ANSI B16.10, ASME B16.10

Flange end Dimension: ANSI B16.5, ASME B16.5

Butt Welded Dimensions: ANSI B16.25, ASME B16.25

Inspection and Test: API598

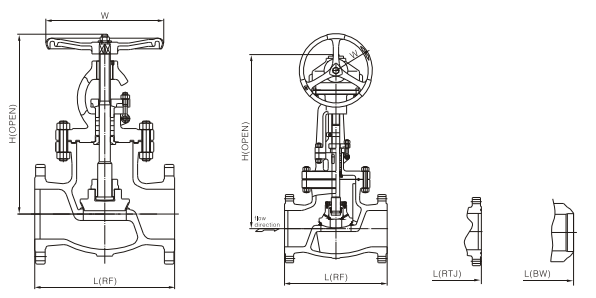

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm

Class150

DN L(RF) L(RTJ) L(BW) W
50 203 216 203 200
65 216 229 216 250
80 241 254 241 250
100 292 305 292 300
125 356 369 356 350
150 406 419 406 400
200 495 508 495 500
250 622 635 622 550
300 698 711 698 610
350 787 800 787 680
400 914 928 914 780
