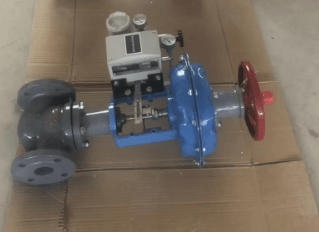

Fluorine Lined Single Seat Control Valve

Body Material
Class
Actuation Type
Size

Fluorine Lined Single Seat Control Valve

Body: WCB, CF8, CF8M, SS304, SS316

Bonnet: WCB, CF8, CF8M, SS304, SS316

Plug: WCB, CF8, CF8M, CF3

Seat: Stainless Steel, Carbon Steel

Nominal Diameter: DN20 to DN400

Nominal Pressure: PN16 to PN64, Class150 to Class2500

End Connection: Buttweld, Socketweld, Flanged

Actuation: Double Acting, Spring Return

Dimension

PN16                                                                       Unit: mm

DN L H0 H1 H2 H3 H A
20 160 53 74 215 270 340 228
25 180 57 74 215 270 340 228
32 180 70 74 215 270 340 228
40 200 75 74 215 270 340 228
50 230 83 143 295 295 390 272
65 290 93 186 335 440 440 272
80 310 100 186 335 440 440 272
100 350 110 186 335 440 440 272
125 400 136 268 420 710 710 400
150 480 143 268 420 710 710 400
200 600 181 277 430 740 740 400
250 730 203 292 445 770 770 400
300 850 230 357 510 810 810 610
