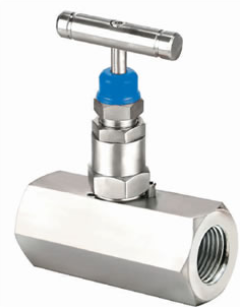

Needle Valve
High Performance • Durable
Industrial needle valve for fine flow adjustment and precise isolation in instrumentation and pressure systems.
Technical Specifications
Key Features & Applications

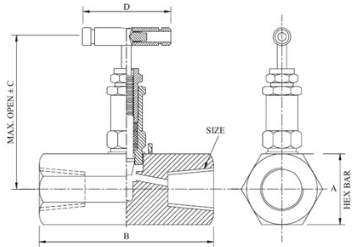

Small-bore instrument lines often require much finer flow adjustment than a conventional isolation valve can provide. A Needle Valve uses a tapered needle-shaped stem that moves gradually towards or away from a matching seat, allowing controlled adjustment through a narrow flow passage.
Rotating the handwheel advances or retracts the needle through a threaded mechanism. The small opening provides useful adjustment for sampling, pressure measurement and instrument isolation systems where relatively low flow rates are involved.
African Valve, a Needle Valve Supplier in Ghana for oil and gas instrumentation, petrochemical processing, power generation and industrial measurement systems throughout Nigeria and other African markets.
Technical Specifications
Parameter | Specification |
|---|---|
Valve Type | Needle Valve |
Design | Straight / Angle Pattern |
Size Range | DN6–DN25 |
Pressure Rating | 3000 / 6000 psi |
Body Material | ASTM A105, ASTM A182 F316, ASTM A182 F304 |
Seat Material | Metal Seat / PTFE Soft Seat |
Closure Design | Tapered Needle |
End Connection | NPT / BSP / Compression Fittings |
Operation | Manual Handwheel |
Body Pressure Rating | ASME B16.34 |
Thread Standard | ASME B1.20.1 for NPT |
Testing | Shell and Seat Leakage Testing |
