Bronze Gate Valve

$8.00$249.00

60% Off
Close
Price Summary
  • $20.00
  • $8.00
  • 60%
  • $8.00
  • Overall you save $12.00 (60%) on this product
In Stock
Clear
Compare
Description

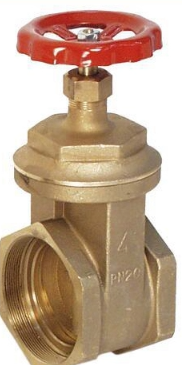

Bronze Gate Valve

Body: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Disc: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Bonnet: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Stem: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Wedge: Bronze, Aluminium Bronze(C95800, C95500, C95200)

Bonnet Gasket: SS304+ Graphite

Packing: Graphite

End Connection: Flanged, Buttweld, Socketweld

Operation: Handwheel, Electric Actuated, Pneumatic Actuated

Nominal Size: DN50 to DN500

Nominal Pressure: PN20, PN16

Design and Manufacture Standard: API 6D, API 608, BS5351

Face to Face Dimension: ANSI B16.10, API 6D

Flanged End Connection: ANSI B16.5

Buttweld End: ANSI B16.25

Inspection and Test: API 598, API 6D

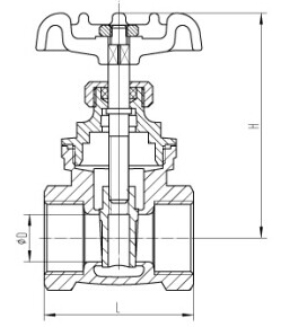

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Unit: mm

DNDLH
151447.573
201851.585
2523.557.590
322964110
403571.5120
504583145
656185174
807295220
10088100261
Additional information
Body Material

Bronze

Pressure

PN20

Size

1 1/2", 1 1/4", 1", 1/2", 1/4", 2 1/2", 2", 3", 3/4", 3/8", 4"
