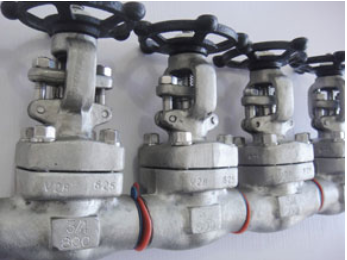

Incoloy Gate Valve

Incoloy Gate Valve

Body: Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Bonnet: Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Disc: Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M

Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy

Gland Packing: Graphite, PTFE

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated

Nominal Size: DN50 to DN500

Nominal Pressure: PN1.0 to 25MPa, Class150 to Class2500

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352

Face to Face Dimension: ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202

Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605

Butt welded End Dimension: ANSI B16.5

Inspection and Test: API 598, API 6D, DIN 3230

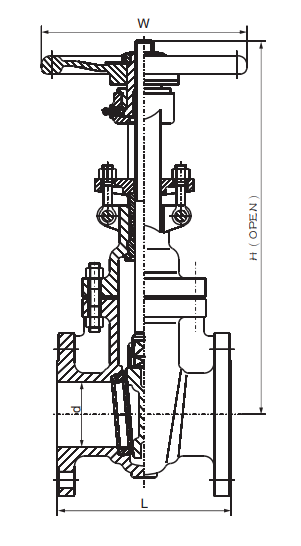

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm

Class 150
