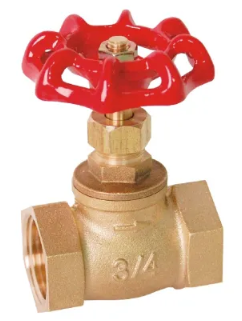

Brass Globe Valve
Body: Brass
Bonnet: Brass
Disc: Brass
Packing Nut: Brass
Packing: PTFE
Stem: Brass
Nominal Size: DN15 to DN50
Nominal Pressure: PN10, PN16, PN20
End Connection: NPT, BSPT, BSP
Dimension? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm
| DN | A | B | C | D | G |
| 15 | 45 | 11 | 65 | 54 | 1/2 |
| 20 | 51 | 11 | 71 | 60 | 3/4 |
| 25 | 64.5 | 15 | 82 | 72 | 1 |
| 32 | 75 | 16 | 95.4 | 80 | 1 1/4 |
| 40 | 82 | 17 | 109 | 100 | 1 1/2 |
| 50 | 100 | 19 | 122.5 | 110 | 2 |
