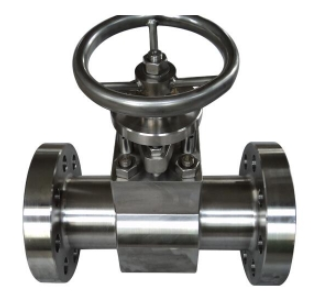

Hastelloy C276 B3 Globe Valve
High Performance • Durable • Leak Proof
SKU: HC276B3GLV-LY-034
Hastelloy C276 B3 Globe Valve with superior throttling capability for extreme chemical control applications.
For controlled throttling and isolation in aggressive process services, Hastelloy C276/B3 Globe Valve Manufacturers in Algeria can supply globe-valve configurations using C276 or B3 for critical wetted components. African Valve can configure the disc, stem, seating and pressure-containing components according to the process medium, temperature and pressure.
Technical Specifications
Parameter | Typical Specification |
Product Type | Hastelloy C276/B3 Globe Valve |
Common Grades | C276 / UNS N10276; B3 / UNS N10675 |
Size Range | 1/2" to 8" (DN15 to DN200) |
Pressure Rating | Class 150, 300, 600 (ANSI B16.34) |
End Connection | Flanged / Butt Weld / Socket Weld |
Operation | Handwheel / Gear / Pneumatic / Electric |
Testing | EN 12266-1 / API 598, where applicable |
Materials & Components
Body: C276 / B3 / Compatible Pressure-Rated Alloy
Disc: C276 / B3 / Compatible Nickel Alloy
Stem: Nickel Alloy / Corrosion-Resistant Alloy
Seat: Metal / PTFE / PEEK
Packing: Graphite / PTFE
Gaskets: Application-Specific Material
Fasteners: Corrosion-Compatible Alloy
Standards
ASME B16.34 is applicable to valve constructions within its scope and addresses pressure-temperature ratings, materials, dimensions, testing and marking. API 623, however, specifically covers steel globe valves and should not be presented as a universal Hastelloy globe-valve standard. API 598 can be applied where the valve is specified for its inspection and testing requirements.
