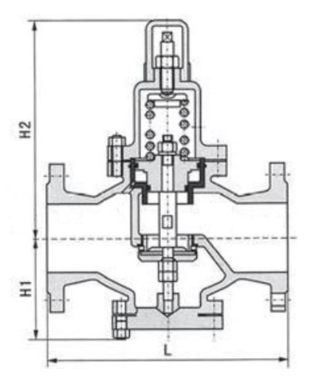

Pilot Operated Pressure Reducing Valve
The Pilot Operated Pressure Reducing Valve delivers precise downstream pressure control with durable construction and reinforced diaphragm for reliable industrial operation.
Starting at$99.99
Contact Us
1 / 2
Product Overview
Pressure Rating
Inlet Pressure: Up to 300 PSI (20.7 bar). Outlet Pressure: 10-75 PSI (0.7-5.2 bar) adjustable. Maximum pressure differential: 225 PSI. Water hammer protection built-in
Temperature Range
Water Temperature: 4°C to 82°C (40°F to 180°F) for standard rubber diaphragm. High temperature: Up to 121°C (250°F) with Viton diaphragm. Freeze protection required below 0°C
Material Construction
Body: Bronze (ASTM B62) or 316 stainless steel with precision machined valve seat
Diaphragm: Buna-N or EPDM rubber with fabric reinforcement
Spring: 316 stainless steel with corrosion-resistant coating
Adjustment Screw: Bronze or stainless steel with fine threads
Pilot Valve: Bronze with renewable seat
Strainer: 316 SST mesh
Connection Type
End Connections: RF Flanged (ANSI B16.5), RTJ Flanged, Socket Weld, Butt Weld, NPT Threaded. Available in standard flange ratings with flat face, raised face, and RTJ facings
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
$99.99
Related Products
Super Duplex Pressure Reducing Valve
Premium Super Duplex Pressure Reducing Valve supplied by African Valve for demanding industrial applications. We stock comprehensive specifications in multiple materials and sizes, available across Africa with expert technical support and fast delivery. Engineered for superior performance in oil & gas, petrochemical, power generation, and process industries.
Starting at$399.99
Contact Us
Steam Pressure Reducing Valve
Industrial-grade Steam Pressure Reducing Valve designed for critical applications requiring reliable performance and long service life. Manufactured to international standards with precision engineering for demanding process conditions.
Starting at$99.99

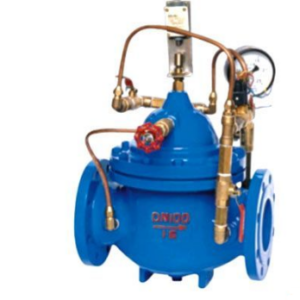

Contact UsPressure Relief And Sustaining Valve
