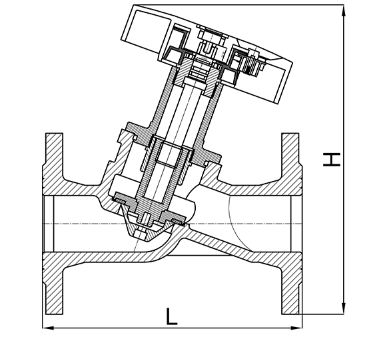

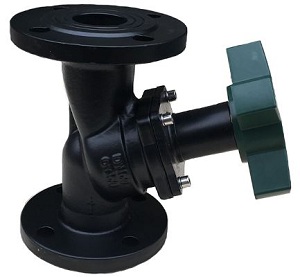

Industrial Balancing Valve engineered for optimal flow control and long service life
Product Overview
Pressure Rating
Working Pressure: ANSI Class 125-300 (PN10-PN40): Class 125 (200 PSI), Class 250 (415 PSI), Class 300 (720 PSI). Designed for HVAC balancing applications
Temperature Range
Service Temperature: -10°C to 120°C (14°F to 248°F) with EPDM trim. Metal trim extends range to 200°C (392°F). HVAC system applications
Material Construction
Body: Ductile iron ASTM A536 or stainless steel 316 CF8M with straight-through design
Disc: Stainless steel 316 with characterized profile
Stem: 316 stainless steel with precise positioning
Seat: EPDM or metal seats
Measuring Ports: Integral pressure tapping points
Actuator Mount: ISO 5211 or NAMUR ready
Connection Type
Flanged (ANSI B16.5), Threaded (NPT/BSP)
Looking for more details?
View complete technical specifications in the Specifications tab, check out Features and Applications, or download product documentation from the Downloads tab.
