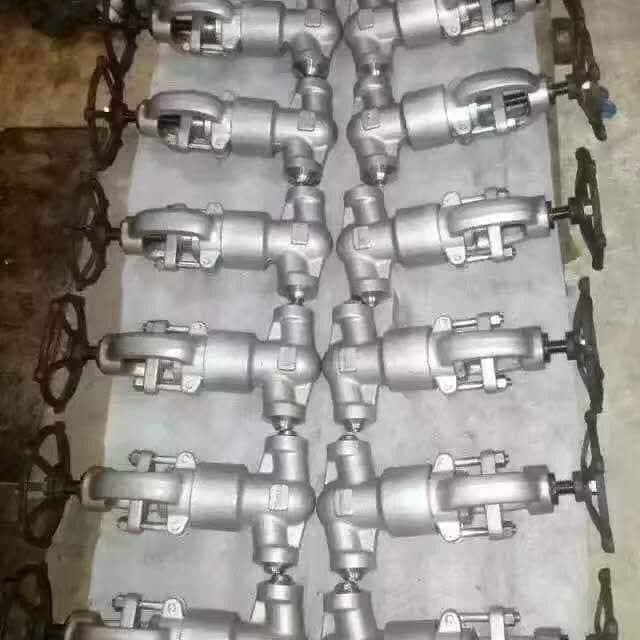

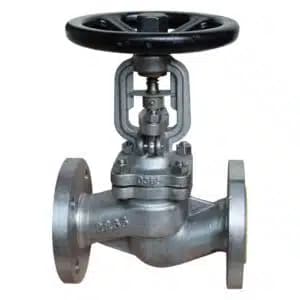

Bellow Seal Globe Valve

Bellow seal globe valves are used where stem leakage must be minimized while maintaining controlled throttling and positive isolation. A welded metallic bellows forms the primary pressure barrier around the stem, while conventional packing provides secondary sealing if the bellows is damaged. African Valve is a leading Bellow Seal Globe Valve Suppliers in Nigeria, supplying valves in different pressure classes, body materials, bellows grades, end connections and actuation arrangements for steam, chemical, petrochemical and process services.

Technical Specifications

Applications

• Power Generation: Steam, boiler and plant utility systems
• Steam Service: High-temperature isolation and throttling
• Oil & Gas: Refinery and hydrocarbon process lines
• Chemical Processing: Compatible corrosive and hazardous fluids
• Petrochemical Plants: Process and utility piping
• Marine & Offshore: Utility and process systems
• Industrial Utilities: Thermal fluid and process services
• Process Plants: Applications requiring controlled stem leakage

Testing & Standards

Depending on construction and project requirements, applicable standards may include BS 1873, API 623, ASME B16.34, ASME B16.10, ASME B16.5, API 598 and EN 12266.

Testing may include shell pressure testing, seat leakage testing, bellows integrity testing, dimensional inspection and full-stroke operation. PMI, NDT and material traceability may also be specified for critical pressure, temperature or corrosion service.
