Description

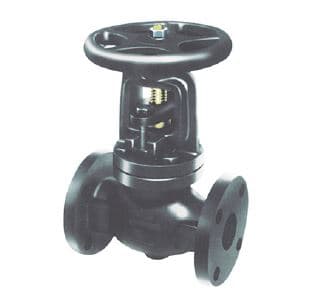

Ductile Iron Globe Valve

Body: Ductile Iron

Bonnet: Ductile Iron

Disc: Ductile Iron

Gasket: Graphite, PTFE

Stem: Stainless Steel

Packing: Graphite, PTFE

Seat: Brass, Bronze

Handwheel: Ductile Iron, Carbon Steel

Nominal Diameter: DN15 to DN300

Nominal Pressure: Class150 to Class300, PN10 to PN64

End Connection: Flanged, Buttweld, Socketweld

Dimension

PN16                                                         Unit: mm

DNLHCD
1513016510095
20150180100105
25160195120115
32180205120140
40200235160150
50230250200165
65290285200185
80310335240200
100350370240220
125400435280250
150480475280285
200600555400340
250730650520405
300850695520460
