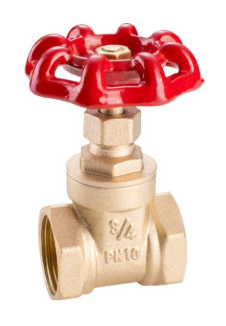

Brass Gate Valve
Body: Brass
Disc: Brass
Gasket: Brass
Cap: Brass
Ball Seat: PTFE
O-Ring: NBR
Gland Nut: Brass
Stem: Brass
Nominal Size: DN15 to DN100
Nominal Pressure: PN10, PN16, PN20
End Connection: NPT, BSPT, BSP

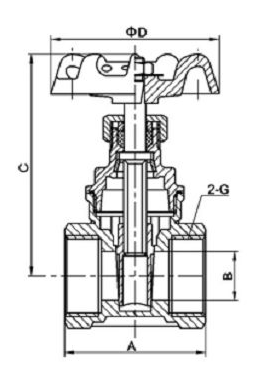

Dimension? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm
| DN | A | B | C | D | G |
| 15 | 43 | 12.7 | 71 | 54 | 15 |
| 20 | 46 | 16 | 76.5 | 54 | 20 |
| 25 | 49 | 20 | 86 | 60 | 25 |
| 32 | 52 | 26 | 99 | 68 | 32 |
| 40 | 56.5 | 32 | 109.5 | 72 | 40 |
| 50 | 64 | 43 | 130.5 | 80 | 50 |
| 65 | 80 | 52 | 156.5 | 100 | 65 |
| 80 | 83 | 63.5 | 183.5 | 110 | 80 |
| 100 | 101.5 | 84 | 223 | 126 | 100 |
