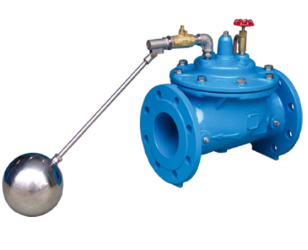

Float Control Valve

Body Material
Class
Size

Float Control Valve

Body: Ductile Iron, Cast Iron

Disc: Ductile Iron, Cast iron

Cover: Ductile Iron, Cast Iron

Diaphragm: EPDM, Rubber

Spring: Stainless Steel

Seat: Ductile Iron, Cast iron

Nominal Diameter: DN20 to DN200

Nominal Pressure: PN10, PN16, PN25, PN40, PN64

End Connection: Flanged

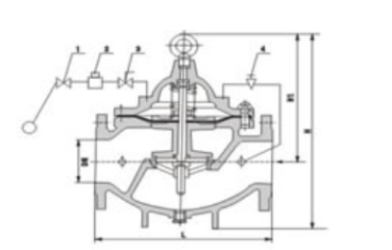

Dimension

PN10                                                          Unit: mm

DN L D D1 H H1
20 180 105 75 212 179
25 180 115 85 212 179
32 180 135 100 212 179
40 203 145 110 265 210
50 203 160 125 265 210
65 235 180 145 310 215
80 285 195 160 350 245
100 360 215 180 460 305
125 400 245 210 520 365
150 455 280 240 570 415
200 585 335 295 695 510
