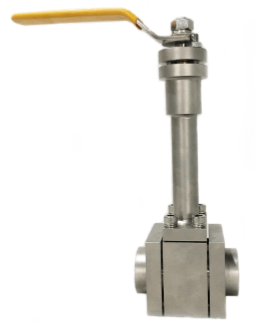

Cryogenic Ball Valve

Cryogenic Ball Valve Manufacturer in Nigeria use quarter-turn operation to provide rapid opening and closing, with the ball, seats, stem and sealing components selected for the required low-temperature service. Depending on the design, floating or trunnion-mounted configurations and extended bonnet arrangements can be used for different pressure, size and installation requirements

Cryogenic Ball Valve Features

Quarter-turn operation - Enables quick valve opening and closing.
Cryogenic construction - Materials are selected for the specified low-temperature service.
Reliable isolation - Provides effective shut-off when correctly sized and specified.
Extended bonnet options - Keeps stem sealing components away from the cold zone where required.
Cryogenic seating - Seat materials are selected according to temperature and medium.
Full or reduced bore - Bore configuration can be selected according to flow requirements.
Cavity-pressure management - Suitable seat designs can address pressure from trapped cryogenic fluid.
Manual or actuated operation - Operation can be selected according to the installation.

Technical Specifications

Parameter	Specification
Product Type	Cryogenic Ball Valve
Ball Design	Floating / Trunnion, depending on design
Function	Isolation
Nominal Size	DN15–DN600 (1/2"–24")
Packing	Low-Temperature-Compatible Material
End Connection	Flanged / Butt Weld / Socket Weld, depending on design
Bore	Full / Reduced, depending on design
Pressure Rating	PN16 / PN25 / PN40 / ASME Class 150 / 300 / 600
Fire-Safe Design	API 6FA / API 607, where specified
Operation	Manual / Pneumatic / Electric, depending on design

Materials & Components

Component	Material Options
Body	ASTM A182 F304 / F316 / F304L / F316L
Ball	SS304 / SS316 / SS304L / SS316L
Stem	SS304 / SS316 / SS410
Seat	PTFE / PCTFE / PEEK / Metal, depending on design
Packing	PTFE / Low-Temperature Material
Bonnet / Extension	Stainless Steel
Seals	PCTFE / PTFE
Fasteners	SS304 / SS316 / Cryogenic-Compatible Alloy

Austenitic stainless steel is commonly used in cryogenic ball-valve construction, while seat materials such as PTFE, PCTFE and PEEK are selected according to temperature, pressure and service requirements.

Standards

Depending on the valve design and application, relevant standards can include API 6D, ASME B16.34, ISO 17292, BS 6364 and ISO 28921-1:2022. Flanged and welded connections may follow ASME B16.5, ASME B16.47 or ASME B16.25 as applicable. Fire-safe testing may be specified to API 607 or API 6FA for applicable designs
