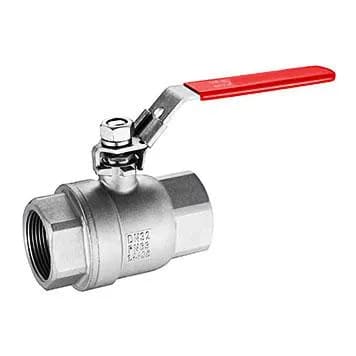

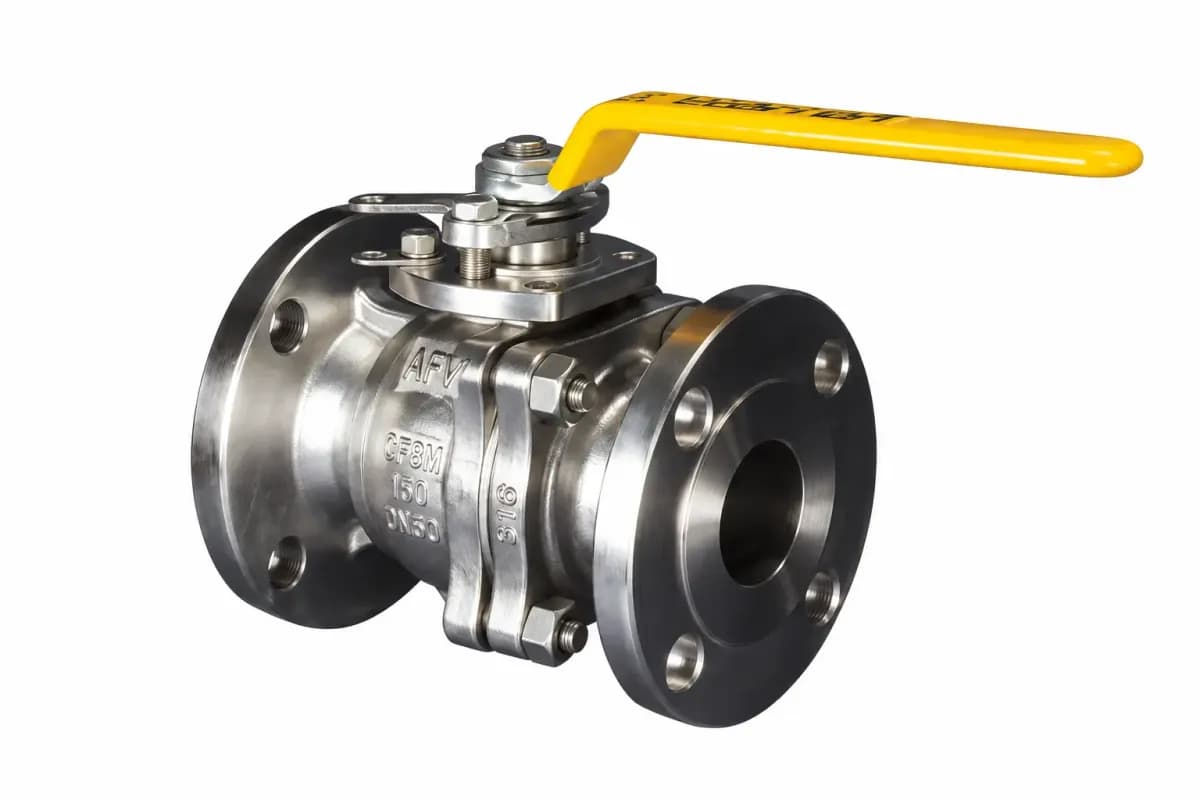

Floating Ball Valve

African Valve is a largest Floating Ball Valve Suppliers In South Africa, manufacturing and supplying valves designed for positive shut-off and flow isolation in industrial piping systems. These valves feature a floating ball mechanism that automatically improves sealing performance under line pressure, making them suitable for handling liquids, gases, steam, hydrocarbons, and other industrial process media. Manufactured in various material grades, pressure classes, end connections, and operating configurations, Floating Ball Valves are supplied to industrial projects across Nigeria, Egypt, South Africa, Kenya, Ghana, and other African markets, as well as international export destinations.

Why Is a Floating Ball Valve Used?

Floating Ball Valve consists of a valve body with a mechanism for isolation of flow that operates through a rotation of a precise machined ball by 90 degrees thus allowing or restricting the flow of fluids, gases, steam, etc. Unlike a trunnion mounted ball valve, in case of a floating ball valve, the ball is not supported by any other component apart from the seats and the stem in the valve body, which allows the ball to move due to pressure. Thus the ball comes in direct contact with the downstream seat and creates an extra tight seal resulting in minimal leakage.

Materials & Construction

The valve is manufactured using:

• Carbon Steel – ASTM A216 WCB

• Low Temperature Carbon Steel – ASTM A352 LCB

• Stainless Steel – ASTM A351 CF8 / CF8M

• Duplex Stainless Steel – ASTM A995 Grade 4A

• Super Duplex Stainless Steel – ASTM A995 Grade 5A / Grade 6A

Construction features include:

• Floating ball design

• Precision-machined ball and stem

• Blow-out proof stem

• PTFE, RPTFE, PEEK, or Metal Seated options

• Anti-static device

• Fire-safe design available

• Flanged, Butt Weld, Socket Weld, and Threaded end connections

• Lever Operated, Gear Operated, Pneumatic Actuated, and Electric Actuated options

Technical Specifications

• Size Range: DN15 to DN300 (½" to 12")

• Pressure Ratings: Class 150, 300, 600, 900 | PN16, PN25, PN40

• Design Standards: API 608, API 6D, ASME B16.34, ISO 17292

• Face-to-Face: ASME B16.10

• Testing Standards: API 598

• End Connections: Flanged, Butt Weld, Socket Weld, Threaded

• Operation: Lever Operated, Gear Operated, Pneumatic Actuated, Electric Actuated

Industrial Applications

Floating Ball Valves are commonly installed in:

• Oil & Gas

• Chemical Processing

• Petrochemical

• Power Generation

• Water & Wastewater Treatment

• Mining

• Marine

• Infrastructure Projects

Product Features

• Floating ball design improves sealing under line pressure

• Quarter-turn operation for quick opening and closing

• Compact body with low operating torque

• Available in multiple material grades and pressure classes

• Suitable for manual and automated operation

• Manufactured according to internationally recognized engineering standards

Manufacturing & Inspection

African Valve manufactures Floating Ball Valves according to international engineering standards and customer project specifications. Every valve undergoes dimensional inspection, hydrostatic shell testing, seat leakage testing, and operational verification before dispatch. Material Test Certificates (MTC), inspection reports, and supporting documentation are available to meet engineering, procurement, and project compliance requirements.

Supply Across Africa

African Valve supplies Floating Ball Valves to industrial, mining, energy, water infrastructure, and processing projects throughout Nigeria, Egypt, South Africa, Kenya, Ghana, and other African markets, as well as international export destinations. Valves are available in multiple material grades, pressure classes, end connections, and operating configurations to meet project-specific operating requirements.
