Double Flanged Butterfly Valve
Reliable Double Flanged Butterfly Valve suitable for various industrial process applications
Technical Specifications
Key Features & Applications

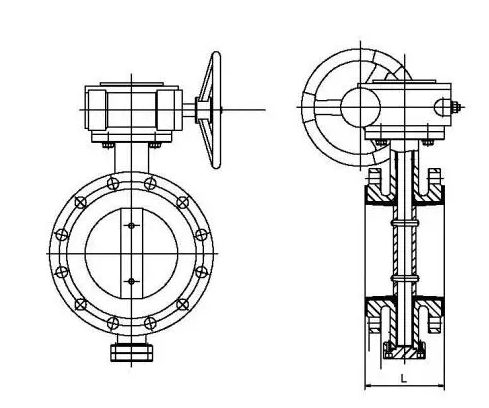

A Double Flanged Butterfly Valve is used in pipelines where secure connections, reliable shutoff and straightforward maintenance are important. With flanges on both ends, the valve can be bolted directly between matching pipe flanges, providing a stable connection for large-diameter pipelines and industrial flow systems.
The valve operates through a quarter-turn disc mechanism, allowing quick opening and closing with minimal operating movement. Depending on the application, resilient-seated and metal-seated designs are available, with body and disc materials selected according to the pressure, temperature and fluid being handled.
Technical Specifications
Parameter | Specification |
|---|---|
Valve Type | Double Flanged Butterfly Valve |
Design | Concentric / Double Offset / Triple Offset |
Size Range | DN50 – DN2000 |
Pressure Rating | PN10, PN16, PN25, Class 150, Class 300 |
Body Material | Cast Iron, Ductile Iron, ASTM A216 WCB, ASTM A351 CF8 / CF8M |
Disc Material | Ductile Iron, Stainless Steel, CF8, CF8M, Duplex Stainless Steel |
Stem Material | SS410, SS316, 17-4PH |
Seat Material | EPDM, NBR, PTFE, Metal Seat |
End Connection | Double Flanged |
Operation | Gear Operated, Pneumatic, Electric |
Design Standards | API 609, EN 593 |
Flange Standards | ASME B16.5, ASME B16.47, EN 1092-2 |
Face-to-Face Standards | API 609, EN 558 |
Testing Standards | API 598, EN 12266-1 |
