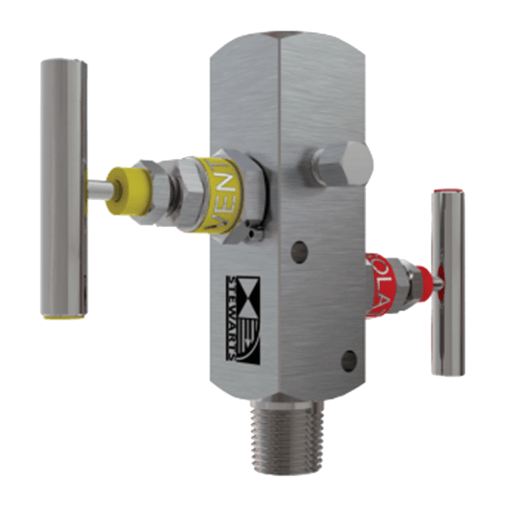

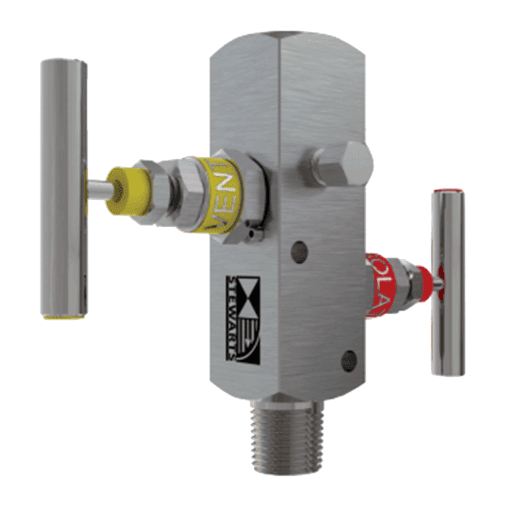

Industrial-grade Single Block And Bleed Valve designed for critical applications requiring reliable performance and long service life. Manufactured to international standards with precision engineering for demanding process conditions.
Product Overview
Pressure Rating
ANSI Class 150-2500 (PN16-PN420): Class 150 (275 PSI), Class 300 (720 PSI), Class 600 (1440 PSI), Class 900 (2160 PSI), Class 1500 (3600 PSI), Class 2500 (6170 PSI). Integrated block and bleed function
Temperature Range
Operating Temperature: -46°C to 232°C (-50°F to 450°F) standard. High temperature: Up to 427°C (800°F) with metal seats. Fire-safe design per API 607
Material Construction
Body: Carbon steel ASTM A216 WCB forged construction with integral block and bleed design
Ball: 316 stainless steel with fire-safe design
Seats: Virgin PTFE with metal backup rings
Stem: 17-4PH stainless steel anti-static design
Bleed Valve: 316 stainless steel needle valve
Seals: Viton FKM
Connection Type
Standard end connections: RF/RTJ Flanged, SW, BW, NPT Threaded per ANSI/ASME standards
