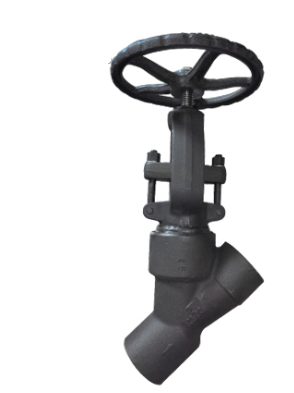

Y Type Globe Valve

Y Type Globe Valve Supplier in Egypt, provides Y type globe valves designed with an inclined body and stem arrangement that creates a more streamlined flow path than conventional Z-pattern globe valves. These valves are suitable for applications across oil & gas, petrochemical, power generation, steam systems, water infrastructure and industrial process facilities. Y-pattern globe valves are particularly useful where lower pressure drop and high-flow performance are required.

Engineering Design & Operation

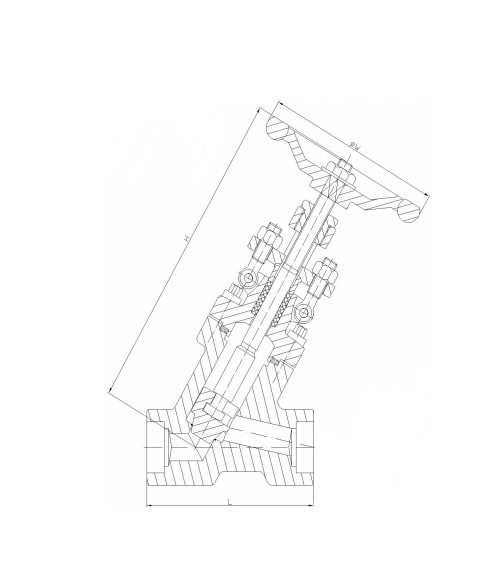

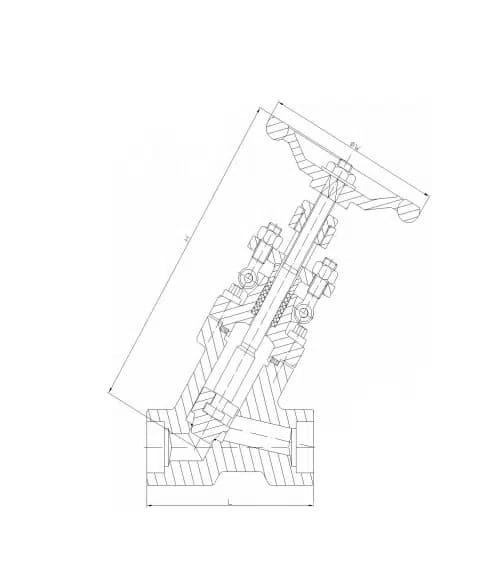

The stem and seat are arranged at an angle to the pipeline, commonly around 45°. The disc still moves linearly toward and away from the seat, so the valve can be used for both regulation and shut-off.

The angled flow path makes the design particularly useful where pressure loss is an important consideration. Depending on the valve, the bonnet may be bolted or pressure sealed, with flanged, socket-weld or butt-weld ends.

Materials
